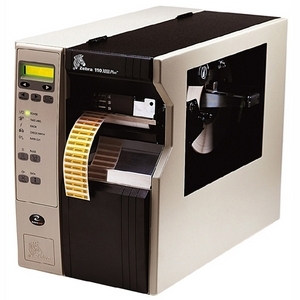

Zebra 113-7A1-00200 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT411 Barcode Label Printer.

Zebra 110XiIIIPlus - Thermal transfer & direct thermal, 300 dpi, 10 ips, 4.5" print width, Serial, ZebraNet PrintServer II and USB interfaces, 16MB SDRAM, & 4MB Flash. Includes Rewinder, ZebraLink, & US power cord. Order cables separately, see accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Printer Options

Rewinder

Max Print Width

4.5 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
300 maximum print resolution (dpi) for your convenience and easy usage
Delivers high-speed, hassle-free labeling solution for your business needs
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
4.50" maximum label width to easily accommodate your needs with added productivity
39" maximum label length for dependable, desired results
Supports continuous form media type for dependable, efficient results with maximum productivity
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra 110XiIIIPlus Barcode Label Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Zebra 113-7A1-00200 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 110XiIIIPlus Barcode Label Printer Model Overview

With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.

Zebra 113-7A1-00200 Barcode Label Printer Overview

The entry-level printer in the High Performance line, Zebra's 110XiIIIPlus is a true 4 inch (102 mm) performance printer. This hardworking printer is the one to call on for heavy-duty, industrial operations. The 110XiIIIPlus printer is ideal for a variety of applications, including top-side and bottom-side circuit board labeling, product identification labels, serial plate labels, product labels, surgical tools and equipment, diagnostic kits, and vials and slides.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET
Standard 2 of 5
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
ISBT-128
Code 128-A
Code 128-B
Code 128-C
UPC 2 or 5 Digit Extension
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
RSS
TLC 39
Micro PDF
Aztec Code

Rewinder:

Yes

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Black Mark

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

15.5"

Width:

10.4"

Depth:

19.5"

Miscellaneous

Package Contents:

110XiIIIPlus Label Printer
Xi IIIPlus User's Guide
Zebra Utility & Accessory CD
North American Edition Power Cord

Cables Included:

Additional Information:

North American Edition, 120 VAC Cord
Clear Media Side Door & Media Hanger
Transmissive and reflective media sensors
Support user-defined fonts and graphics including custom logos
ZPL II drawing commands including boxes, circles, and diagonal lines
Advanced media/ribbon counter
Enhanced Alert notification monitors printhead condition
300 unique darkness settings

Platform Supported:

Certifications & Standards:

BSMI
CCC
C-Tick
cUL
EN55022 Class B
EN55024
EN61000-3-2,3
FCC Class B
GOST-R
ICES-003 Class B
IEC 60950-1 / EN60950
MIC
NOM
S Mark
VCCI
ZIK

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Reviews

Q&A

Accessories

Labels

Ribbons

Printheads

Service Contracts

Questions? Get help from a
Printer Expert!

The Zebra 113-7A1-00200 Barcode Label Printer is also known as ZEB-1137A100200 or 113-7A1-00200.
