Zebra 140-701-00200 Barcode Label Printer

Zebra ZT421 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT421 Barcode Label Printer.
Zebra 140XiIIIPlus  -  Direct Thermal/Thermal Transfer Printing, 203 DPI, 5ΓÇ¥ Print Width, USB/RS-232/Parallel Interfaces. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Rewinder
Max Print Width
5.5 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 x 203 maximum print resolution (dpi) for your convenience and easy usage
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 5.63" maximum label width for dependable, desired results
  • 39" maximum label length for your convenience and feasible usability
  • Supports continuous tape media type for better reliance and maximum usability
  • Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
  • 8" x Roll Paper media size for maximum feasibility and better accommodation of your requirements
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More

Need a different version? See all Zebra 140XiIIIPlus Barcode Label Printers

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued See Replacement
Zebra 140-701-00200 Barcode Label Printer
Zebra 140-701-00200 Barcode Label Printer
Zebra 140-701-00200 Barcode Label Printer
Zebra 140-701-00200 Barcode Label Printer Zebra 140-701-00200 Barcode Label Printer

Full specifications (PDF)

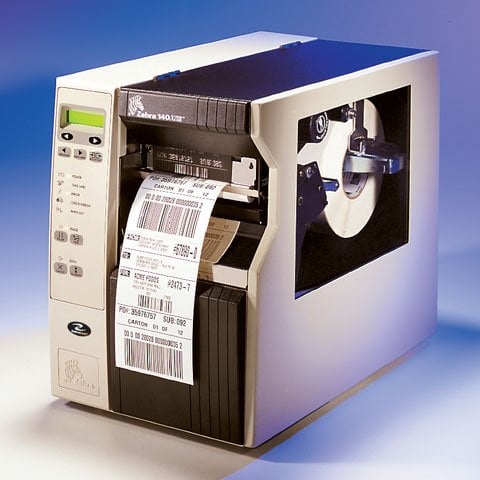

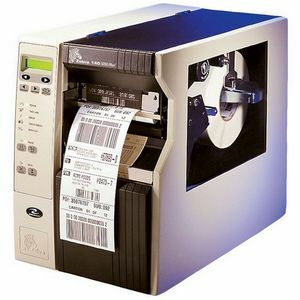

Zebra 140XiIIIPlus Barcode Label Printer Model Overview
The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 140-701-00200 Barcode Label Printer Overview

The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second (ips). With such powerful performance capabilities and all metal construction, it is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control and work-in-process labels. The 140XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203 x 203
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • UCC
  • Codabar
  • ISBT-128
  • Planet Code
  • UPC-A
  • EAN-8
  • Plessey
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • RSS
  • UPC-E
  • EAN-13
  • POSTNET
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • MSI
  • LOGMARS
  • Codablock
  • Maxi Code
  • TLC 39
  • PDF-417
  • Data Matrix
  • Code 49
  • QR Code
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Micro PDF
Rewinder:
Yes
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Tape
  • Die-cut Label
  • Black Mark
Media Size:
  • 8" x Roll Paper
  • 3.20" x 1476 ft
  • 3.20" x 984 ft
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12.01 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
5.63"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • ZBI
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
62 Hz
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 140Xiii Plus Label Printer
  • Xi IIIPlus User's Guide
  • Utility & Driver CD
  • ZebraNet Connectivity CD
  • North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • Rewind Option
  • Ribbon width: 1.57" to 5.1"
  • Advanced media/ribbon counter
  • Enhanced Alert notification monitors printhead condition
  • 300 unique darkness settings
  • PCMCIA socket
  • CompactFlash socket
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Certifications & Standards:
  • CCC
  • BSMI
  • Class B
  • FCC Class B
  • R.O.C. CNS 13438
  • Canadian ICES-003
  • EN55022: 1998 Class B
  • Australia AS/NZS 3548
  • Argentina 92/98 Phase 3
  • EN55024: 1998; EN61000-3-2, 3 w/amendment A12
  • IEC 950/EN60950: 1992 w/amendments 1 through 4 (CB Scheme)
  • Bi-National UL 60950 Third Edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 140-701-00200 Barcode Label Printer is also known as ZEB-140XIIII+REW or 140-701-00200.
