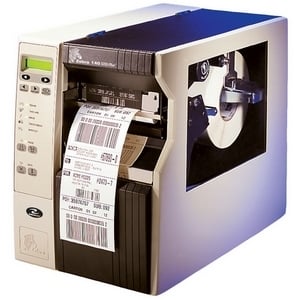

Zebra 140-7A1-00100 Barcode Label Printer

Zebra ZT421 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZT421 Barcode Label Printer.
Zebra 140XiIIIPlus - Direct Thermal/Thermal Transfer Printing, 203 DPI, 5ΓÇ¥ Print Width, Ethernet/USB/RS-232 Interfaces, Cutter, Media Hanger. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232(Part# 52184).
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Cutter
Max Print Width
5.5 inch
Ribbon Core Size
1 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 5.51" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Features multi-functional knives for conveniently cutting the paper to provide you with the desired shape
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More

Need a different version? See all Zebra 140XiIIIPlus Barcode Label Printers

Discontinued See Replacement
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Zebra 140-7A1-00100 Barcode Label Printer
Zebra 140-7A1-00100 Barcode Label Printer
Zebra 140-7A1-00100 Barcode Label Printer
Zebra 140-7A1-00100 Barcode Label Printer Zebra 140-7A1-00100 Barcode Label Printer

Full specifications (PDF)
Zebra 140XiIIIPlus Barcode Label Printer Model Overview
The 140XiIIIPlus is the fastest printer in Zebra's product line, printing up to 12 inches per second. With such powerful performance capabilities and all metal construction, the 140XiIIIPlus printer is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is well-suited for applications where high quality labels are required on demand or in batches including compliance/shipping labels, product identification labels, inventory control, and work-in-process labels. The 140XiIIIPlus printer is designed to deliver maximum performance and reliability in the most demanding industrial applications. The 140XiIIIPlus features 16MB RAM, 4MB Flash, & standard parallel, serial, and USB 2.0 interface ports. All units ship with one user's manual.
Zebra 140-7A1-00100 Barcode Label Printer Overview

Zebra's 140XiIIIPlus is known for its high-performance, mission-critical ruggedness. This hardworking printer is the one to call on for heavy-duty, industrial operations. Powerful performance and steel construction, it is the ideal choice for high-volume, mission-critical applications with 24-hour duty cycles. The 140XiIIIPlus is also well-suited for applications in which labels are required quickly, on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
5.04"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 93
  • Code 39
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
5.51"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
11.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 140XiIIIPlus Label Printer
  • 120 VAC North American Edition Power Cord
  • ZebraNet Connectivity CD for Print Server
  • Accessories CD
  • User Guide
Cables Included:
AC
Additional Information:
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • North American Edition, 120 VAC Cord
  • Clear Media Side Door and Media Hanger
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Certifications & Standards:
  • Bi-National UL 60950 Third Edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
  • IEC 950/EN60950: 1992 w/amendments 1 through 4 (CB Scheme)
  • EN55022: 1998 Class B
  • EN55024: 1998
  • EN61000-3-2, 3 w/amendment A12
  • Canadian ICES-003 Class B
  • FCC Class B
  • Argentina 92/98 Phase 3
  • Australia AS/NZS 3548
  • R.O.C. CNS 13438
  • BSMI
  • CCC
  • CE
  • C-Tick
  • cUL
  • GOST-R
  • NOM
  • S Mark
  • VCCI
  • ZIK
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0732387102526
UPC: 732387102526
EAN: 0732387102526
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 140-7A1-00100 Barcode Label Printer is also known as ZEB-1407A100100 or 140-7A1-00100.
