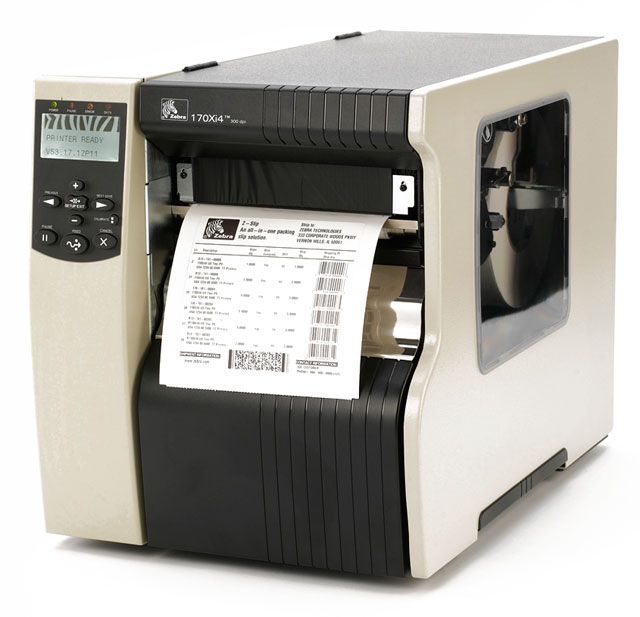

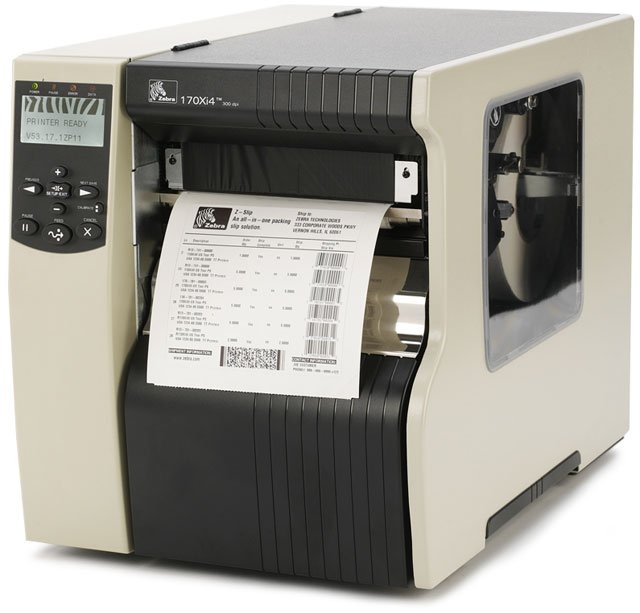

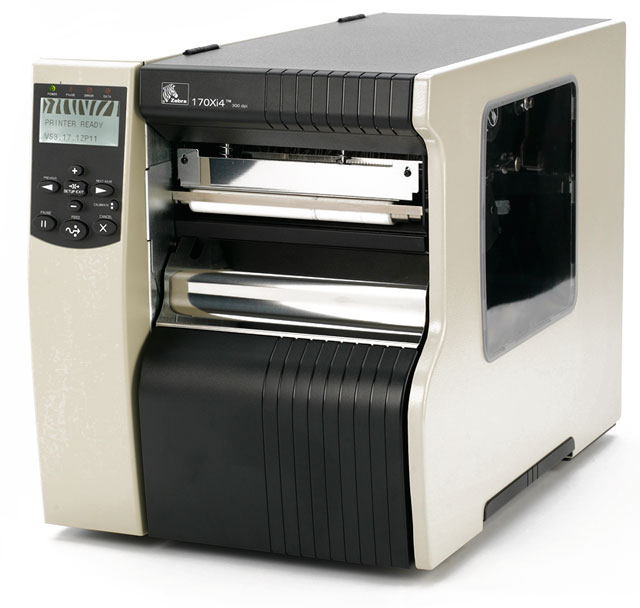

Zebra 170-801-00100 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT62063-T110100Z Barcode Label Printer.

Zebra 170Xi4 - Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Parallel, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Max Print Width

7 inch

Print methods: Thermal transfer or direct thermal
Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
Clear media side door allows easy monitoring of supplies usage without opening the printer systems
32 bit 133 Mhz RISC processor
64 MB on-board linear Flash memory
16 MB SDRAM Flash memory
Internal real-time clock
Advanced label/media counters
Dual media sensors - transmissive and reflective, selectable through software or front panel
Auto calibration when printer is turned on or when printhead is closed using approximately two labels

Need a different version? See all Zebra 170Xi4 Barcode Label Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Zebra 170-801-00100 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 170Xi4 Barcode Label Printer Model Overview

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Zebra 170-801-00100 Barcode Label Printer Overview

The industrial-strength 170Xi4 Thermal Label Printer with 300-dpi (12 dots per mm) print resolution can print large volumes of labels, promoting greater productivity with fewer roll changes. With its all-metal construction, this printer is ideal for tough applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

6.60"

Barcode Symbology Supported:

Code 11
Code 39
Code 93
Code 128
Code 128-B
Code 128-A
Code 128-C
Code 128 UCC
UPC-A
UPC-E
EAN-8
EAN-13
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
POSTNET
Standard 2 of 5
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Codabar
Codablock
PDF-417
Code 49
Data Matrix
Maxi Code
QR Code
TLC 39
Micro PDF
Aztec Code
RSS
GS1 DataBar

Features:

LCD Display

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Media Types & Handling

Media Type:

Black Mark
Continuous Form
Roll Fed
Die-cut Label
Fanfold

Media Handling:

Catch Tray

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

12 mil

Maximum Roll Diameter:

Maximum Label Width:

7.10"

Maximum Label Length:

12.50 ft

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

XML
ZPL II

Power Description

Input Voltage:

110 V AC

Physical Characteristics

Height:

15.5"

Width:

13.3"

Depth:

20.4"

Miscellaneous

Package Contents:

170Xi4 Thermal Label Printer
North American Edition Power Cord
Xi4 User's Guid
ZebraNet Connectivity CD

Cables Included:

Additional Information:

Auto calibration
Unicode Compliant
Intelligent printhead
300 unique darkness settings
Improved head test for element out
Construction: 12-gauge steel frame
Single 32 bit 133 Mhz RISC processor
Multi-level Element Energy Equalizer
Clear Media Side Door and Media Hanger
Automatic media/ribbon sensing capability
Mirror feature allows user-defined printer configurations to be retrieved from the network

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0017080100100, 0627974138562

UPC: 017080100100, 627974138562

EAN: 0017080100100, 0627974138562

UNSPSC: 43212108
