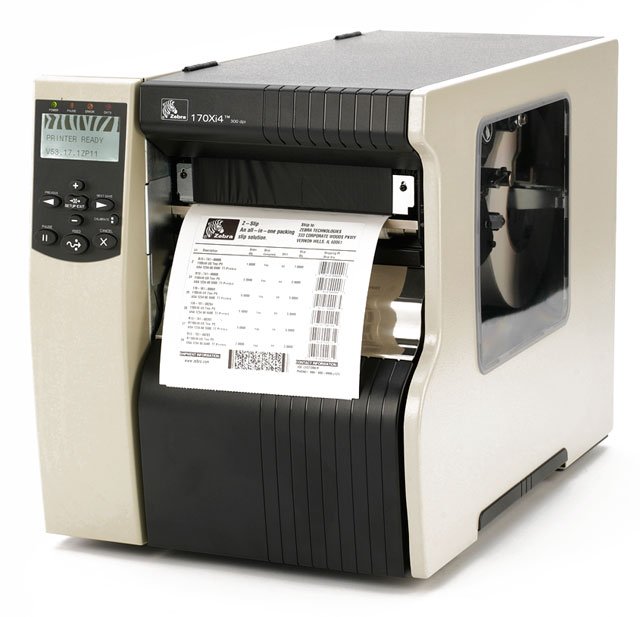

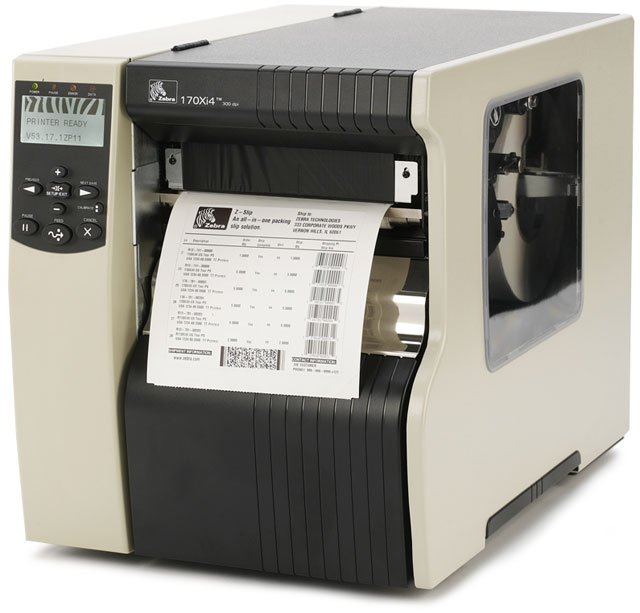

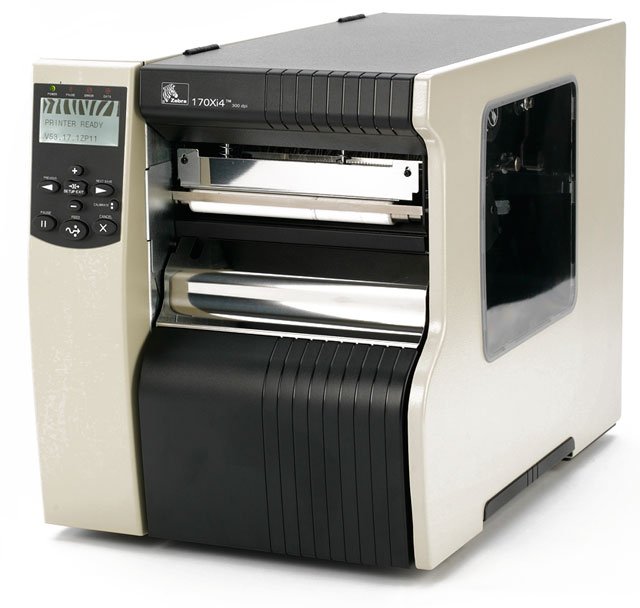

Zebra 172-8K1-00000 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT62062-T01A100Z Barcode Label Printer.

Zebra 170Xi4 - 170Xi4,203DPI,ZEBRANET PRINT SERVER 10/100

Print Resolution

203 dpi

Print methods: Thermal transfer or direct thermal
Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
Clear media side door allows easy monitoring of supplies usage without opening the printer systems
32 bit 133 Mhz RISC processor
64 MB on-board linear Flash memory
16 MB SDRAM Flash memory
Internal real-time clock
Advanced label/media counters
Dual media sensors - transmissive and reflective, selectable through software or front panel
Auto calibration when printer is turned on or when printhead is closed using approximately two labels

Need a different version? See all Zebra 170Xi4 Barcode Label Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Zebra 172-8K1-00000 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 170Xi4 Barcode Label Printer Model Overview

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Zebra 172-8K1-00000 Barcode Label Printer Overview

In addition to providing 6.6" (168 mm) wide labels at 12" (305 mm) per second, Zebra's 170Xi4 product has been enhanced to provide:

- LCD content customizable to user needs
- Large, easy to use, multilingual LCD screen
- Flexible connectivity including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product
- Advanced ribbon- and media-low LCD/e-mail alerts
- Intelligent printhead system

The industrial-strength 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, and pallet shipping/receiving labels, either on demand or in batches.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

6.60"

Barcode Symbology Supported:

Codabar
Code 11
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Code 39
Code 93
EAN-13
EAN-8
ISBT-128
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET
Standard 2 of 5
EAN With 2 or 5 Digit Extension
UPC 2 or 5 Digit Extension
UPC-A
UPC-E
Aztec Code
Codablock
Code 49
Data Matrix
Maxi Code
Micro PDF
PDF-417
QR Code
RSS
GS1 DataBar
TLC 39
Micro PDF-417

Real Time Clock:

Yes

Application/Usage:

Desktop

Features:

Clear Media Side Door
Auto-calibration
Mirror Printing
Element Energy Equalizer

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11g

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Black Mark
Continuous Label
Die-cut Label
Fanfold
Roll Fed

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

12 mil

Maximum Roll Diameter:

Maximum Label Width:

7.10"

Maximum Label Length:

12.50 ft

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

XML
ZPL II

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

15.5"

Width:

13.3"

Depth:

20.4"

Weight (Approximate):

67 lb

Miscellaneous

Package Contents:

170Xi4 Label Printer
North American Edition, 120 VAC Power Cord
User's Guide
Software & Driver CD
Radio Card

Cables Included:

Platform Supported:

Certifications & Standards:

Unicode
BSMI
cTUVus
CCC
CE
C-Tick
EN55022 Class B
EN55024
EN61000-3-2,3
FCC Class B
GOST-R
ICES-003 Class B
IEC 60950-1
EN60950
KCC
NOM
S Mark
STB
UkrSEPRO
VCCI
ZIK

Environmentally Friendly:

Yes

Environmental Certification:

China RoHS

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0615841000265, 0647232038595

UPC: 615841000265, 647232038595

EAN: 0615841000265, 0647232038595

UNSPSC: 43212108
