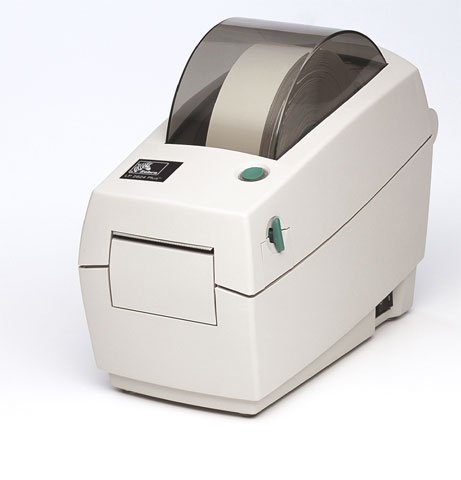

Zebra 2824-21101-0001 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZD411 Barcode Label Printer.

Zebra LP 2824 - Direct thermal, 203 dpi, 4 ips, 2" print width, serial & USB interfaces, 128KB RAM, 512KB flash. Includes U.S. power supply, product reference guide, & dispenser. Order cables separately. See accessories. For serial, please see 9-9 cable, (Part# 2901-9MF9ST).

Printer Type

Desktop

Printing Technology

Direct Thermal

Interface Options

Serial (RS-232), USB

Print Resolution

203 dpi

Printer Options

Dispenser

Max Print Width

2.5 inch

Direct Thermal/Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
203 maximum print resolution (dpi) offers great dependability with added efficiency
Monochrome print color capability for better reliance and maximum productivity
Label Print gives dependable results with maximum productivity
Save time and money for your business by using one printer for all your employees
2.36" maximum label width for dependable, desired results
11" maximum label length for dependable, desired results
Supports fanfold media type for dependable, efficient results with maximum productivity
Dispenser feature for maximum efficiency and convenience
Comes with 128 KB standard memory to ensure maximum efficiency with great quality printing results

Need a different version? See all Zebra LP 2824 Barcode Label Printers

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Zebra 2824-21101-0001 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra LP 2824 Barcode Label Printer Model Overview

With its competitive electronic platform, the Zebra LP 2824 delivers high quality barcode label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions. All units ship with one user's manual.

Zebra 2824-21101-0001 Barcode Label Printer Overview

With one of the smallest footprints of any two-inch desktop printer in the industry, the LP 2824 fit into places other printers cannot, without sacrificing speed, print quality or media capacity. This space conservation is great for the typically congested areas around cash registers, desks, and countertops.

For easy integration with existing systems and a variety of applications, the LP 2824 printers also offer the widest range of interface choices, including serial, parallel, USB, internal, or external Ethernet with the ZebraNet PrintServer II option. Their sturdy, dual-wall, high-density plastic construction ensure they will survive punishment that would damage other printers in their class. A full five-inch media roll is easily loaded into the LP 2824 printers thanks to the OpenACCESS design, and media usage can be monitored through the clear top cover.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.20"

Barcode Symbology Supported:

Code 39
Code 128-A
Code 128-B
Code 128-C
Code 93
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
UPC-A with 2 or 5 Digit Extension
EAN-13
EAN-8
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
POSTNET
Japan Postal
Plessey
RSS-14
German Post Code
MSI-3
Maxi Code
Micro PDF-417
Macro PDF-417
QR Code
Data Matrix

Features:

Dispenser

Memory

Standard Memory:

128 KB

Flash Memory:

512 KB

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Fanfold
Roll Fed
Die-cut Label
Continuous Form
Tag Stock
Continuous Receipt
Linerless

Media Size:

2.36" x Roll Paper

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

7 mil

Maximum Roll Diameter:

Maximum Label Width:

2.36"

Maximum Label Length:

11"

Label Core Size:

1.50"

Fonts & Emulation

Language Emulation:

EPL II

Software

Software Included:

Windows Driver
BAR-ONE Lite Software
Windows Label Design utility

Power Description

Input Voltage:

110 V AC
220 V AC

Frequency:

60 Hz

Physical Characteristics

Height:

6.8"

Width:

3.9"

Depth:

7.5"

Miscellaneous

Additional Information:

Head-up sensor
OpenACCESS design
Soft font storage in Flash memory
Media Thickness from 0.003" to 0.007"
Construction: ABS double-walled casing
Printer Font Set: USA and European
Maximum label and liner length (optional) 22"
User Documentation: English/European/Latin America
128 KB RAM & 512 KB Flash with No Real Time Clock
Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737

Media sensors:
