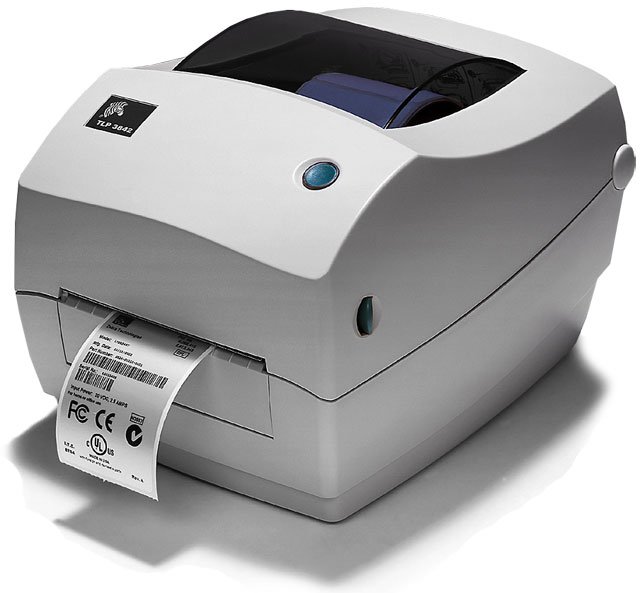

Zebra 3842-10300-0031 Barcode Label Printer

Zebra ZD421 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD421 Barcode Label Printer.
Zebra TLP 3842  -  TLP 3842 Desktop Label and Receipt Printer (EPL2 Command Language, Serial, Parallel and USB Interfaces, 100-240V Power Supply, 1.25MB RAM, 1MB Flash and Real Time Clock)
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.25 inch
  • Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Get great quality printing results with label print printing
  • 4.25" maximum label width for dependable, desired results
  • 11" maximum label length to easily accommodate your needs with added productivity
  • Supports black bar media type for better reliance and maximum usability
  • Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 512 KB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra TLP 3842 Barcode Label Printers

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued See Replacement
Zebra 3842-10300-0031 Barcode Label Printer
Zebra 3842-10300-0031 Barcode Label Printer
Zebra 3842-10300-0031 Barcode Label Printer
Zebra 3842-10300-0031 Barcode Label Printer Zebra 3842-10300-0031 Barcode Label Printer

Full specifications (PDF)
Zebra TLP 3842 Barcode Label Printer Model Overview
The Zebra TLP 3842's 300 dpi printhead enables high quality, crisp, clear printing in applications requiring data such as two-dimensional barcodes, fine text or composite graphics. 300 dpi resolution printing also ensures that very small labels, such as those used on laboratory vials or items of jewelry, are easy to read and scan.
Zebra 3842-10300-0031 Barcode Label Printer Overview

TLP 3842 enables high quality, crisp, clear printing for labeling applications that require data such as two dimensional barcodes, fine text or composite graphics. Producing data on very small labels, for example laboratory vial labels or jewelry tags, is greatly enhanced by the high density print resolution. Equipped with variety of interfaces, Zebra 3842 offers versatile connectivity and integration. Additionally, with the optional internal ZebraNet PrintServer II, the TLP 3842 can be quickly and easily networked into an Ethernet environment, without the need for a dedicated PC connection. The TLP 3842 is used for a variety of applications, including prescription bottle labeling, laboratory specimen labeling, electrical component and mechanical part labeling.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Data Matrix
  • QR Code
  • Macro PDF-417
  • Micro PDF-417
  • Maxi Code
  • MSI-3
  • RSS-14
  • German Post Code
  • Plessey
  • POSTNET
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8
  • EAN-13
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • Code 39
  • Code 93
  • RSS Composite
  • Codablock
  • Code 49
  • PDF-417
  • LOGMARS
  • Standard 2 of 5
  • Code 11
Application/Usage:
Desktop
Memory
Standard Memory:
512 KB
Memory Technology:
SRAM
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Form
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Gap
  • Notch
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Cover Open Sensor
Media Thickness:
7 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
11"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
EPL2
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • TLP 3842 Thermal Label Printer
  • 1 x Printhead
  • Software Media (Includes: Label Design Software and Window Drivers)
Additional Information:
  • Construction: High-impact, double-walled plastic enclosure
  • OpenACCESS design
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0000060015570, 0000886443601
UPC: 000060015570, 000886443601
EAN: 0000060015570, 0000886443601
UNSPSC: 43212108
