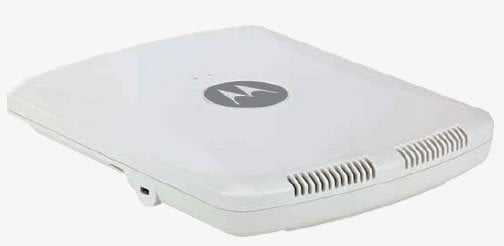

Zebra AP-6522E-66030-US Access Point

The Zebra AP-6522E-66030-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra AP 6522E - Wireless Access Points, Motorola AP 6522E, Dual Radio Wireless Access Point (Express 802.11n AP, INT ANT US)

When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
300 Mbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity
This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
Gigabit Ethernet port for ultra-fast wired network speeds
Its management capability provides efficient control over setup and configuration of your network
MIMO Technology feature for maximum efficiency and convenience
Ceiling Mountable form factor for your usage convenience and better reliance

Need a different version? See all Motorola AP 6522 Access Points

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

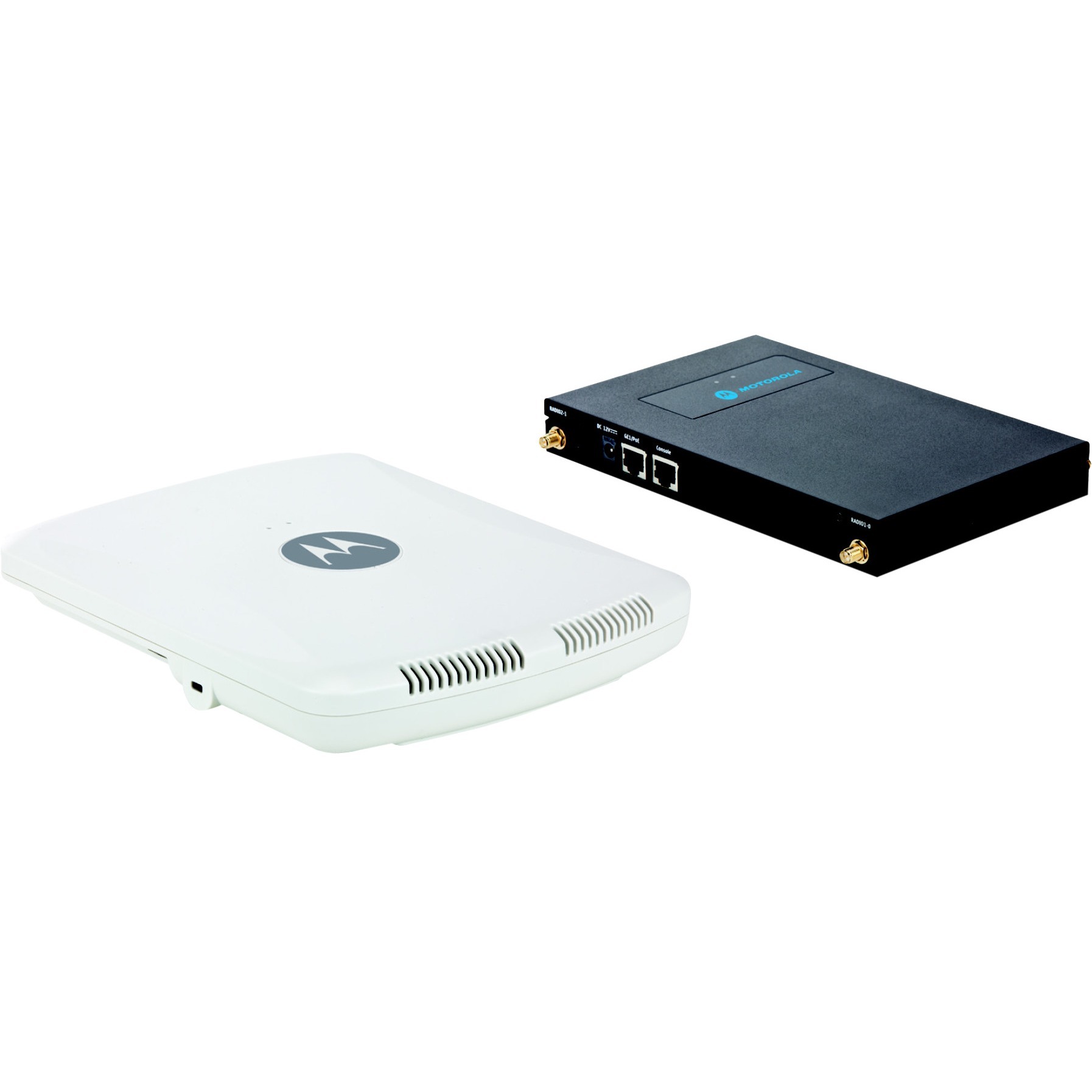

Motorola AP 6522 Access Point Model Overview

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless network. The AP 6522 is a site-survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, the AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points. It connects to other access points in a mesh topology to enable the extension of wireless network coverage to areas where Ethernet cabling is cost prohibitive or otherwise impractical.

Zebra AP-6522E-66030-US Access Point Overview

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network. The AP 6522 is a site survivable wireless access point that does not require a controller. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.47 GHz

UNII Minimum Frequency:

5.20 GHz

UNII Maximum Frequency:

5.83 GHz

Antenna Gain (Isotropic):

3.9 dBi
4.4 dBi
7.5 dBi

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

Stateful Packet Filtering Firewall
AAA Radius Services
Wireless IPS-Lite
VPN Gateway
Location-Based Access Control

Features:

MIMO Technology
Quality of Service (QoS)

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

Network (RJ-11):

PoE (RJ-45) Port:

VGA:

HDMI:

Audio Line Out:

Management Port:

Yes

Power Description

Input Voltage:

12 V DC
48 V DC

Physical Characteristics

Form Factor:

Ceiling Mountable
Wall Mountable

Height:

1.1"

Width:

7.5"

Depth:

9.5"

Weight (Approximate):

13.60 oz

Miscellaneous

Certifications & Standards:

Radio Approvals:

FCC (USA)
Industry Canada
CE (Europe)

IEEE Standards:

802.3
802.3u
802.3ab
802.11a
802.11b
802.11g
802.11n
802.3af

Item Numbers

GTIN: 0783555027615, 0886201148600

UPC: 783555027615, 886201148600

EAN: 0783555027615, 0886201148600

UNSPSC: 43222631
