Full specifications (PDF)
- Tiny 2.2 in x 2.8 in footprint (56mm x 72mm) that fits into the smallest of spaces
- Standard 1/4-20 camera mount for quick and easy mounting to a wide range of third-party accessories
- High resolution 1280 x 800 sensor for superior performance on damaged and poorly printed barcodes
- Megapixel sensor with 184% higher resolution than the previous DS457 for superior performance on damaged and poorly printed barcodes
- Designed for all-day, everyday use with IP54 sealing and 5 ft drop to concrete
The DS5502 is a compact, manufacturing and more. The tiny DS5502 is ideal wherever a zero or minimal footprint is required. At just 1.2 in H x 2.2 in W x 2.8 in D (3.0cm H x 5.6cm W x 7.2cm D) the scanner can be mounted just about anywhere—attached to the register, under the counter for a true zero footprint, on the retail cashwrap or a space-constrained light manufacturing workstation. The DS5502 is ideal wherever a zero or minimal footprint is required. At just 1.2 in H x 2.2 in W x 2.8 in D (3.0cm H x 5.6cm W x 7.2cm D) the scanner can be mounted just about anywhere—attached to the register, on the retail cashwrap or a space-constrained light manufacturing workstation. And its sleek, elegant aesthetics are ideal for even the trendiest boutique. The DS5502 can be integrated into the most space-constrained products to bring world-class scanning performance to self-service kiosks, contactless pickup lockers, buy online pickup in store (BOPIS) kiosks, lottery terminals, ticketing kiosks and more. Integration into your product designs is easy. The flat face design can be flush mounted for a clean look. If you have a Zebra DS457 deployed today, the DS5502 offers similar dimensions and matching mounting hole locations for an easy replacement.
Proven Scanning Performance in a Compact, Fits Anywhere Design:

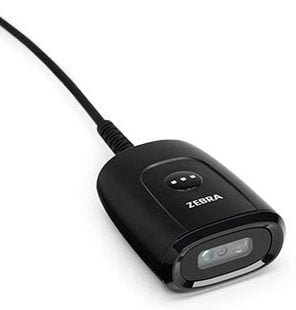

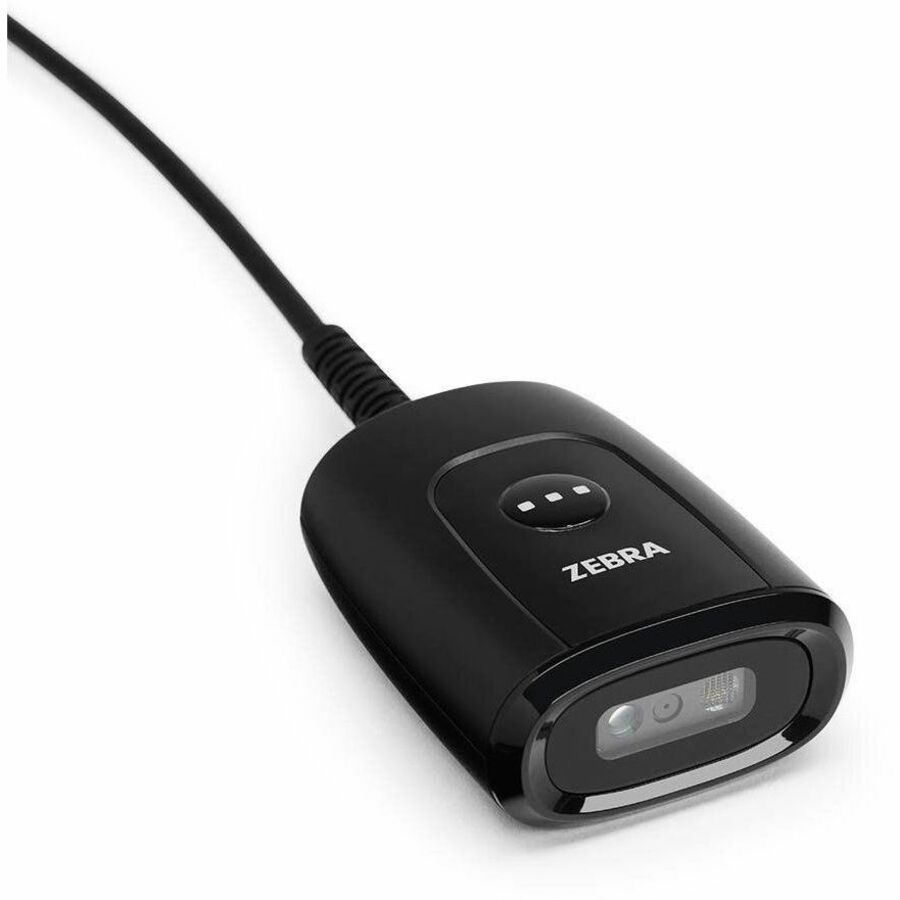

The compact DS5502 Fixed Mount Scanner puts high-performance scanning wherever you need it—the retail counter, self-service and ticketing kiosks, boarding gates and more. A versatile design lends itself to both standalone and embedded applications. With a tiny footprint, the DS5502 Series fits into the smallest of kiosks, while its modern and elegant design blends seamlessly in any décor. Flexible mounting options, including support for third-party accessories, enable the DS5502 Series to meet a wide range of applications. Zebra’s industry-leading performance ensures flawless high-volume scanning of any 1D and 2D barcode, including mobile barcodes on customer phones. And Zebra DNA ensures maximum performance year after year and makes it easier than ever to integrate, deploy and manage your scanners.
Give Every User a Better Scanning Experience:
Both seasoned employees and novice self-service users can count on first-time, every-time scanning with Zebra’s Intelligent Imaging technology. A megapixel sensor delivers 184% higher resolution than the previous generation DS457 for superior performance on damaged and poorly printed barcodes. Fast swipe speeds ensure barcodes are captured as quickly as they’re presented. A large, omnidirectional field of view makes scanning easier than ever, as there’s less need to carefully position barcodes for a successful scan.
Engineered to Read Virtually Any Barcode:
Whether your applications call for 1D or information-rich 2D barcodes, printed or mobile, including image capture or OCR, the DS5502 Series can handle them all. Enhanced performance on mobile barcodes, including those on dimly lit screens, ensures that customer’s electronic tickets, boarding passes, loyalty cards and coupons are effortlessly scanned.
All the Cables You Need:
Multiple cable options—including 2 ft (0.6m) and 7 ft (2.1m), straight and right-angle connectors—provide just the right fit for your particular needs.
User-friendly Illumination and Aimer:
Soft white illumination is easy on the eyes and the green LED aimer is easy to see in a variety of lighting conditions, making the DS5502 Series a great fit for all applications, including ones sensitive to red light sources or safety issues with laser aimers.
Feedback You Can Hear in Any Environment:
The DS5502 Series features good decode LEDs and an adjustable beeper that’s twice as loud as the DS457. Users can easily confirm a successful scan even in loud environments or when the scanner is embedded inside a kiosk or locker.
Instantly Capture and Process Driver’s License Data:
Use the information on a driver’s license to instantly verify age and identification, populate loyalty and credit card applications and more
Capture OCR, Images and Documents:
The DS5502 Series makes it easy to take high quality images of prescriptions, ID cards, checks and more. Support for multiple OCR fonts streamlines and error-proofs data collection.
Standard Mount Opens Up Virtually Limitless Possibilities:
The DS5502 Series features a standard 1/4 - 20 camera mount for quick and easy mounting to a wide range of third-party accessories— clamps, poles, swivels, wall mounts, vehicle dash mounts and more. You can always find the right accessory for your specific need.
Triple Your Mounting Options with an Innovative 3-in-1 Mount:
Zebra’s new 3-in-1 mounting accessory is a computer display mount, wall mount and presentation stand all in one. The magnetic mounting face securely holds the DS5502 Series scanner in place, while letting the scanner swivel to either side as needed. It’s easy to lift the scanner off to scan an item in handheld mode, then pop it back on.
Designed to Survive Spills and Drops:
The DS5502 Series offers the durability needed to handle all-day, everyday use in a variety of applications and environments. It’s built to withstand 5 ft (1.5m) drops to concrete and IP54 sealing protects against spills and dust.
Superior Reliability:
The DS5502 Series is backed by a 3-year warranty. Since Zebra data capture products are proven to have less than 0.5% failure rates, you can be confident in the long-term reliability of your scanner.
Easy Application Development
Get everything you need to easily integrate scanning into your business applications with our Scanner Software Development Kits (SDKs) for Windows, Android, iOS and Linux. These SDKs provide documentation, drivers, test utilities and sample source code.
Multi-Interface Flexibility:
Every DS5502 Series scanner supports both RS232 and USB to help future-proof your investment. If you migrate your host from RS232 to USB, you won’t need to purchase new scanners. And the DS5502 Series is USB Certified for worry-free integration.
Zebra’s IoT Connector:
Zebra’s IoT Connector is a fully automated real-time data collection tool that routes data from your scanners into your preferred IoT endpoint. The result? You can mine the data and get the insights needed to make decisions in real time.
Up-to-the-Minute Insight into Every Aspect of Your Scanners:
Remote Diagnostics automate the recording of scanner asset information, health and statistics, parameter settings and barcode data—giving you the information needed for event verification, blockchain traceability, pilot site ROI generation, troubleshooting and predictive fleet-wide trend analysis.
Zebra DNA—Set Up. Secure. Manage. Optimize.
With more than 50 years of field-proven innovation, Zebra knows the scanning journey better than other providers. That’s why we’ve engineered Zebra DNA into all of our scanners. This suite of software tools provides constant visibility, increases uptime and gives you the flexibility to respond to changing needs. For example, 123Scan offers a patented configuration wizard that simplifies every step of deploying your scanners. With Advanced Data Formatting, you can easily create scanner data formatting rules to optimize your workflows and solve business problems. ScanSpeed Analytics helps identify poor performing barcodes that slow down transactions. Advanced parsing tools streamline the capture of more kinds of data. Powerful complimentary management software enables easy remote management. And much more.
Markets and Applications
Retail and Hospitality • Point of sale: self-checkout • Buy online pickup in store (BOPIS) • Price checks • Mobile coupons • Loyalty cards • Driver’s license parsing (N.A. only) • Self-service kiosks Light Manufacturing • Work in progress (WIP) • Asset tracking Transportation • Ticketing • Identification verification • Self-service kiosks
