Full specifications (PDF)
Print Technology:
- Direct Thermal
- Thermal Transfer
Zebra TLP 2824 Plus Printhead Model Overview
The ultra-compact Zebra TLP 2824 Plusâ„¢ bar code label printer, for print widths up to 2.2 inches/56 mm, brings powerful performance to applications requiring both direct thermal and thermal transfer printing. It includes a 32-bit RISC processor for faster formatting and first label out, an auto-sensing serial port, and co-resident EPL and ZPL programming languages.
Key Features:
• Print methods: Thermal transfer (TLP) or direct thermal (LP) • Programming language: EPL™ and ZPL® are standard • OpenACCESS™ for easy media loading • Quick and easy ribbon loading • Auto calibration • 32-bit RISC processor • Reset button defaults to factory and/or network settings • Unicode™ compliant • Head up sensor • Certified Microsoft® Windows® drivers • Standard tear-off mode • Serial port auto detection • ENERGY STAR® qualified
Applications:
Great for anyone who needs an easy-to-use, reliable printer for spaceconstrained areas, the 2824 Plus can be used in a variety of printing applications, including: Retail: price marking, coupon and receipt printing, pharmacy prescription labeling Healthcare: specimen labeling, patient tracking Manufacturing: light-industrial work-in-process and product labeling Security: visitor ID, evidence tracking, parking passes Travel & Hospitality: boarding passes, bag tags, ski lift tickets
Standard Features:
• Print methods: Thermal transfer (TLP) or direct thermal (LP) • Programming language: EPL™ and ZPL® are standard • Construction: Dual-wall frame, reinforced plastic • OpenACCESS™ for easy media loading • Quick and easy ribbon loading • Auto calibration • 32-bit RISC processor • Reset button defaults to factory and/or network settings • Unicode™ compliant • Head up sensor • Certified Microsoft® Windows® drivers • Standard tear-off mode • Serial port auto detection • ENERGY STAR® qualified
ZebraLinkâ„¢ Solutions Software:
• Zebra Setup Utilities—Windows utility drivers to set up and configure your Zebra printer • ZebraDesigner™ Pro—An intuitive, easy-to-use software program for creating complex label designs (option) • ZebraDesigner—Offers basic features for simple label design • ZebraNet™ Bridge Enterprise—Centrally manage Zebra printers from a single PC screen anywhere on your global network • ZebraNet Utilities v7.0—provides enhanced printing, conversion and administration capabilities; message management; and more • Zebra Universal Driver—The most powerful driver available from Zebra • Web View—Connect and control Zebra barcode printers via the printer’s Web interface using a common Web browser using ZPL II® • Alert—Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired, or wireless device to minimize downtime
Firmware:
• ZBI 2.0™—Powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more (option) • ZBI-Developer™—Programming utility makes it dramatically easier for programmers to create and test complex ZBI 2.0 programs and distribute them to the printer (standard with ZBI 2.0) • ZPL II®—Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with tabletop and mobile Zebra printers • EPL2™—Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications • EPL—Line Mode support (LP 2824 Plus) enables format compatibility with legacy applications
Communication and Interface Capabilities:
• Centronics® parallel (36 pin) connector ports • RS-232 Serial with USB V1.1 interface • 10/100 internal Ethernet with USB V1.1 (option)
Barcode Symbologies ZPL
• Barcode Ratios: 2:1 (non-rotated) and 3:1 • Linear barcodes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS) • 2-Dimensional: PDF417, MicroPDF417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec
Fonts/Graphics:
• 16 resident expandable ZPL fonts • One resident scaleable ZPL font • Five resident expandable EPL2 fonts • Supports user-defined fonts and graphics— including custom logos

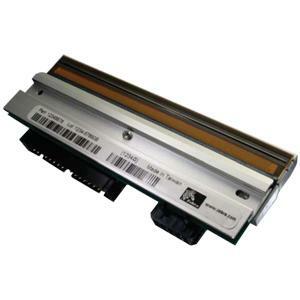

Zebra G105910-148 Printhead Overview
Get the best performance from your Zebra printer by using
QualityZebra supplies are made by Zebra, for Zebra printers, to the highest standards. Theyare all extensively tested to ensure best print quality and performance before they arebranded and introduced into the range. Tested on the printers they will be used on,in the combinations they will be used in, they are developed specifically for ourusers' requirements.
Technical Information
Miscellaneous
Compatibility:
Zebra TLP2824 Printer
Country of Origin:
China
Item Numbers
GTIN:
0783555029756, 5051964609179, 5712505151402
UPC:
783555029756
EAN:
0783555029756, 5051964609179, 5712505151402
UNSPSC:
44103110
Get help from a
Label Expert!an Expert!a Label Pro!
Label Expert!an Expert!a Label Pro!
The Zebra G105910-148 Printhead is also known as
ZEB-G105910-148
or G105910148.
