Zebra H12-701-00000 RFID Printer

The Zebra H12-701-00000 RFID Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra R110xi  -  H-127 RFID Printer (200 dpi, HF and RFID Reader)
Print Resolution
203 dpi
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Monochrome print color capability to meet your printing requirements with maximum efficiency
  • Ideal for retail tagging, manufacturing as well as healthcare tracking
  • 4.50" maximum label width for dependable, desired results
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More

Need a different version? See all Zebra R110xi RFID Printers

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Zebra H12-701-00000 RFID Printer
Zebra H12-701-00000 RFID Printer
Zebra H12-701-00000 RFID Printer
Zebra H12-701-00000 RFID Printer Zebra H12-701-00000 RFID Printer

Full specifications (PDF)

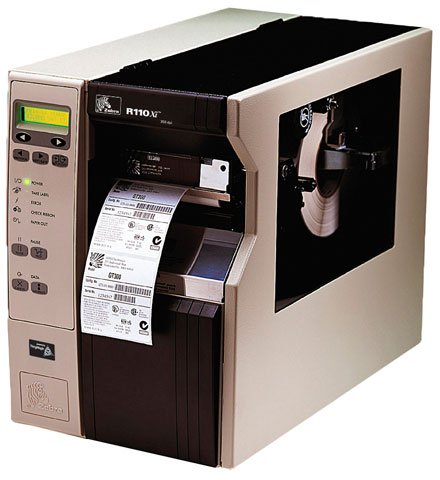

Zebra R110xi RFID Printer Model Overview
Built on the solid, tested Xi III Plus platform, the Zebra R110xi printer/encoder offers an unprecedented level of on-demand printing flexibility in tag placement and label size (4-inch) as well as unique features such as XML encoding for a seamless integration into enterprise systems, automatic inlay position calibration, program positioning, multiple power levels for precisely encoding small labels, and statistics tracking, which allows customers to track the number of good and unusable labels. For companies looking to comply with RFID mandates, the R110xi provides a robust and flexible solution with key advantages offering investment protection, efficiency and productivity.
Zebra H12-701-00000 RFID Printer Overview

Built on the solid, tested XiIIIPlus platform, the R110Xi HF offers encoding at 13.56 MHz for powerful but short-range readability. Offering an unprecedented level of on-demand printing flexibility in tag placement, the R110Xi HF also has unique features such as: XML for seamless integration into enterprise systems; automatic calibration; flexible inlay positioning; multiple power levels; statistics tracking; easier RFID programming; and more detailed information via the front panel display. The R110Xi HF supports currently available protocols, including Ultralight and ISO15693. The R110Xi HF printer/encoder is firmware upgradeable to support new protocols, so users can seamlessly upgrade to future RFID protocols as needed.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
120 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
10.4"
Depth:
19.5"
Miscellaneous
Package Contents:
  • R110Xi HF Thermal Label Printer
  • Power Cord (North American Edition)
  • Driver and Software CD
  • RXi User's Guide
Cables Included:
AC
Additional Information:
  • Label Tracking
  • Clear Media Side Door
  • RFID antenna port selection
  • 300 unique darkness settings
  • Multilingual backlit LCD display
  • Maximum read/write flexibility for small label printing
  • Place transponders virtually anywhere within a smart label
  • Enhanced Alert notification - monitors printhead condition
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • CompactFlash (up to 1 GB memory) for added label format/font storage
  • Automatic program position selection for optimal transponder placement
  • Fully integrated HF RFID Reader/Encoder supporting Mifare Ultralight, ISO15693 and ISO14443A
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
