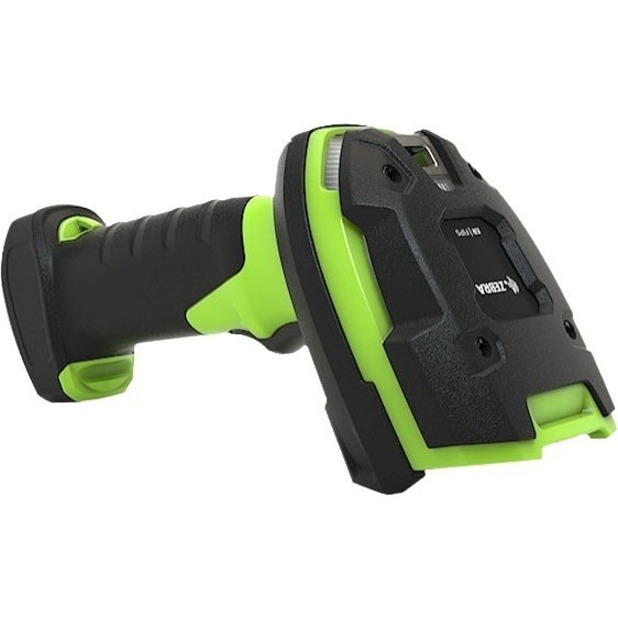

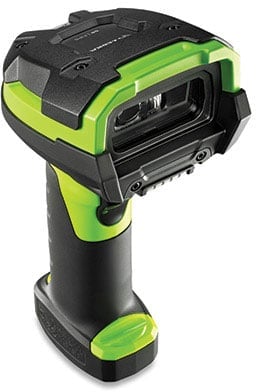

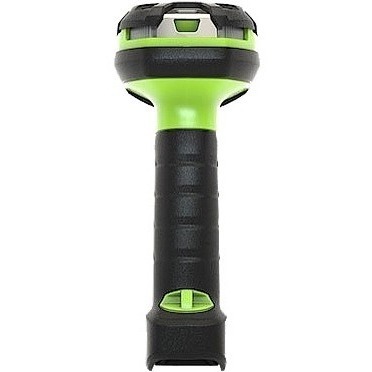

Zebra LI3608-ER Barcode Scanner Model Overview
The Zebra LI3608-ER ultra-rugged scanner gives your workers unstoppable performance in the toughest environments. Designed to capture almost any 1D barcode from as close as 2 in./5.1 cm to as far as 56 ft./17.1 m away.
Key Features:
- Unstoppable performance for extended range 1D barcode scanning
- Ultra-rugged — the most indestructible design in its class
- Includes Zebra’s DataCapture DNA technology platform of highly intelligent firmware, software, utilities and apps
- Extreme temperature rating — built to handle extreme cold, heat and more
- Complimentary Tools for Easy Deployment and Management across an enterprise.
Every day, workers in your warehouse scan thousands of 1D barcodes near and far to ensure order accuracy and on-time delivery. Their productivity depends on the quality of the scanner you put in their hands. With the LI3600-ER Ultra-Rugged scanner, you can give them the best. This linear imager enables extended range capture of virtually any 1D barcode displayed on a screen or printed on a label—nearer and farther than any scanner in this class, from 2 in./5.1 cm to 56 ft/17.1 m away. Built for your toughest environments, the LI3600-ER is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete and dual IP65/IP68 sealing. With DataCapture DNA, Zebra’s exclusive software ecosystem, you can simplify every stage of the scanning experience over the life of your device. And when it comes to cordless technology, the LI3678-ER’s Zebra-only features put it in a class of its own. The LI3600-ER—the unstoppable performance you need to maximize workforce productivity and throughput in your operations.
Best-In-Class Scanning Performance—and Scanning Range
This linear imager delivers an extraordinary scanning range as far as 56 ft./17.1 m, enabling your workers to scan 1D printed barcodes 26% farther than the prior generation laser model. Your workers only need one scanner to read barcodes a hands-length away (including extra-wide codes) and on the uppermost shelves of your warehouse racks. Capture virtually any barcode in any condition—including under shrinkwrap, damaged, dirty or poorly printed—as fast as workers can pull the trigger, for first-time, every-time scanning.
Ultra-Rugged—the Most Indestructible Design in its Class
Zebra ultra-rugged scanners earned their name for a reason—you won’t find a tougher family of scanners. Ready for the world’s harshest environments, the LI3600-ER has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles. With dual IP65/IP68 sealing, the LI3600-ER is dust proof, can handle the force of jetting water and be fully submerged in water. Built to withstand extreme heat, cold and humidity, the LI3600-ER can be used anywhere—indoor, outdoor and even in the freezer
Ultra-Rugged Cradle and Charging Contacts Designed to Last
The LI3600-ER is the first scanner in its class to offer a cradle with IP65 sealing. Its industrial charging contacts withstand 250,000 insertions. And Zebra’s exclusive Connect+ Contact technology assures reliable, corrosion-free charging over the life of the scanner.
Intuitive Aiming Pattern for Ultra Simple Scanning at Any Distance
A new aiming pattern provides foolproof aiming for codes in hand— and on the uppermost warehouse racks.
Flexible Feedback Modes
Mix and match the feedback modes that best fit your environment— vibration, wraparound LEDs that are easy to see from any position, a beep tone and Zebra’s Direct Decode Indicator that projects illumination on the captured barcode.
More Than 100,000 Scans on a Single Charge
The PowerPrecision+ battery delivers the ultimate in battery power and management. You get more than twice the amount of scans per charge than with competitive models, so workers can scan more items over a longer period of time. You also get visibility into a wealth of battery health-related data, including charge cycles consumed, current battery status and a State of Health meter, which identifies if batteries are healthy and holding a full charge, no longer holding a full charge, or at end of life and require replacement.
Battery and Bluetooth® Status At-A-Glance
The first-in-its-class battery ‘charge gauge’ and Bluetooth status LED make it easy to monitor battery power as well as Bluetooth connectivity.
Switch Workflows in an Instant with AutoConfig
Since scanner settings are stored in the cradle base, simply pair the LI3600-ER to a different base to automatically configure it for a new host application. For example, you can take a scanner from the forklift and use it for shipping without manually changing settings.
Keep Track of Your Scanners and Prevent Workflow Interruptions
With Virtual Tether, you won’t have to worry about a warehouse worker leaving a scanner behind on a pallet. Both the scanner and cradle will alert users when a scanner is taken beyond its Bluetooth range or left out of the cradle for a predefined length of time.
Eliminate Bluetooth Interference with Wi-Fi Friendly Mode
Zebra’s exclusive Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can create in your Wi-Fi environment.
Identify and Correct Problem Barcodes with ScanSpeed Analytics
Only from Zebra, ScanSpeed Analytics provides detailed metrics on every barcode captured—enabling you to identify poor performing barcodes that slow down your operations.
No-Cost Tools to Meet Your Management Needs
With 123Scan, you can easily create configuration barcodes to program scanners. If your imagers are in multiple locations across the country or around the world, with Scanner Management Service (SMS) you can configure and update the firmware for any LI3600-ER device that is plugged into the host—no depot staging or user action is required.
Up-To-The-Minute Insight Into Every Aspect of Your Scanners
The logging agent’s Remote Diagnostics capabilities automate the recording of scanner asset information, health and statistics, configuration settings and barcode data—giving you the information needed for event verification, blockchain traceability, pilot site ROI generation, troubleshooting and predictive fleet-wide trend analysis.
This family of scanners offers a model to meet virtually every need in warehousing and manufacturing • LI3600-SR: Standard range 1D barcode capture • LI3600-ER: Extended range 1D barcode capture • DS3600-SR: Standard range scanning of 1D and 2D barcodes • DS3600-HP: High-performance scanner captures 1D/2D barcodes over longer distances, plus OCR, photos and documents • DS3600-HD: Captures high-density 1D/2D barcodes • DS3600-DP: Capture of Direct Part Marks (DPM) • DS3600-ER: Extended range 1D/2D barcode capture • DS3600-DPA: Optimized to read Direct Part Marks (DPM) and wide 1D barcodes • DS3600-KD: Versatility of a keypad and color display
UNSTOPPABLE PERFORMANCE FOR EXTENDED RANGE 1D BARCODE SCANNING
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D LI3608-ER corded and LI3678-ER cordless scanners are ready for one of the world's toughest environments - the warehouse. Designed to capture virtually any 1D barcode from as close as 2 in./5.1 cm to as far as 56 ft./17.1 m away, these scanners provide the ultimate in versatility - workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.
SUPERIOR PERFORMANCE
You get the ultimate in scanning performance - period. Workers can scan virtually any 1D barcode from 2 in./5.1 cm to as far as 56 ft./17.1 m away, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed or on your highest warehouse rack, no problem - this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The warehouse is as tough as it gets. That's why we created a new product category - the ultra-rugged scanner. These freezer-ready corded and cordless models are built to survive an 8 ft./2.4 m drop to concrete and are the only scanners in this class that are dust-tight, spray-proof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn't be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Full specifications (PDF)
