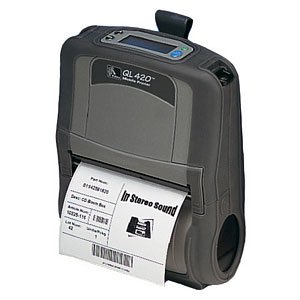

Zebra Q4D-LUGAB000-00 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra ZQ630 Plus Barcode Label Printer.

Zebra - QL420+ 802.11b/g CHINA/PHILIP

Printer Type

Mobile

Print Resolution

203 dpi

Direct Thermal Printer is a reliable label/receipt printing solution with maximum efficiency
203 maximum print resolution (dpi) for better reliance and added usability
Produce high-quality documents with this monochrome printer to increase your productivity
Enjoy the optimal performance in today's on-demand labeling applications
Carry your printer with you anywhere with its lightweight design
Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
4.12" maximum label width for your convenience and feasible usability
32" maximum label length to easily accommodate your needs with added productivity
Supports roll fed media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra QL 420 Plus Portable Barcode Printers

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Zebra Q4D-LUGAB000-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra QL 420 Plus Portable Barcode Printer Model Overview

The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Zebra Q4D-LUGAB000-00 Portable Barcode Printer Overview

The QL 420 Plus direct thermal mobile printer delivers print widths up to 4.09" (103.9 mm). In addition to offering the rugged construction, user-friendly options, and flexible QuickLink connectivity that have made Zebra's QL 420 and other QL series printers so popular, the enhanced QL 420 Plus printer is specially designed for complex mobile printing applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 128
Code 93
Code 39
EAN-8
Interleaved 2 of 5
EAN-13
POSTNET
Plessey
MSI
UPC-E
UCC/EAN 128
UPC-A
FIM
EAN-18
PDF-417
Maxi Code
Data Matrix
Aztec Code
RSS
QR Code
GS1 DataBar

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11g

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Linerless
Fanfold
Black Bar
Receipt

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.63"

Maximum Label Width:

4.12"

Maximum Label Length:

32"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL
XML
EPL2

Power Description

Power Source:

Battery

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

7.5"

Width:

Depth:

Weight (Approximate):

2 lb

Miscellaneous

Platform Supported:

Item Numbers

GTIN: 0605802480960

UPC: 605802480960

EAN: 0605802480960

UNSPSC: 45101512

Reviews

Q&A

Accessories

Labels

Service Contracts

Questions? Get help from a
Printer Expert!

The Zebra Q4D-LUGAB000-00 Portable Barcode Printer is also known as ZEB-Q4D-LUGAB000-00 or Q4D-LUGAB000-00.
