Zebra R2A-0UBA000N-00 Portable Barcode Printer

The Zebra R2A-0UBA000N-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra RW 220 - Direct Thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Bluetooth. Power supply (Part# AT17696-1) not included, see accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Print Resolution

203 dpi

Direct Thermal Printer provides high-quality label/receipt printing with maximum dependability
203 maximum print resolution (dpi) for your convenience and easy usage
Produce high-quality documents with this monochrome printer to increase your productivity
Conveniently print your receipts
Carry your printer with you anywhere with its lightweight design
Supports continuous receipt media type for maximum feasibility and better accommodation of your requirements
Belt Clip feature for better reliance and usability
Comes with 8 MB standard memory for timely printing with added reliability
1" media size for maximum feasibility and better accommodation of your requirements

Need a different version? See all Zebra RW 220 Portable Barcode Printers

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Zebra R2A-0UBA000N-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra RW 220 Portable Barcode Printer Model Overview

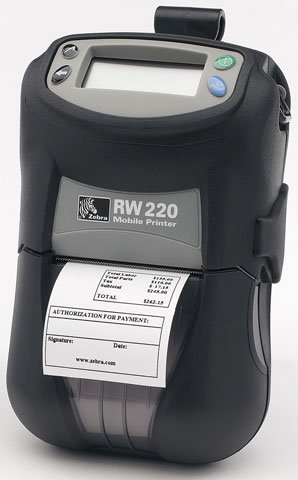

Designed for the Road Warrior, the RW 220 mobile receipt printer is ideal for printing delivery receipts and invoices on the go. The modular design allows users to choose among wireless options, card readers, and integral accessories such as a vehicle mount for simplified route printing. Easy-access vehicle mounting cradles and charging options as well as user-intuitive interfaces and angled displays enhance the convenience and simplicity of mobile printing. Uniquely designed for harsh outdoor environments, RW 220 mobile printers endure extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it on the pavement, and expect the same performance day in and day out.

Zebra R2A-0UBA000N-00 Portable Barcode Printer Overview

The Zebra RW 220 is a 2-inch mobile printer ideal for receipts on the go. The compact printer is cable ready and offers angled display for easy use while on the go! Additionally, the RW 220 has a high speed processor and large memory for quick and efficient processing of complex receipts, graphics and fonts.

As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 220 can withstand the harsh demands of a number of Route Accounting/Field Service, Retail and Transportation printing applications, including: Delivery Receipts, payment receipts and travel passes.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.20"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
EAN-14
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
QR Code

Features:

Belt Clip
LCD Display

Memory

Standard Memory:

8 MB

Memory Technology:

DRAM

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Bluetooth:

Yes

Media Types & Handling

Media Type:

Continuous Receipt
Tag
Label
Synthetic Media
UV Coated Media

Media Size:

1"
2.35"
Custom Size - 2.35"

Maximum Roll Diameter:

2.25"

Fonts & Emulation

Language Emulation:

CPCL
ZPL
EPL
XML

Power Description

Input Voltage:

7.4 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2000 mAh

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

4.4"

Depth:

2.9"

Miscellaneous

Package Contents:

RW 220 Receipt Printer
Lithium Ion Battery
Belt Clip

Additional Information:

Media Sensors: Bar, gap

Platform Supported:

Certifications & Standards:

FCC Part 15 Class B
Canadian ICES-003
VCCI
NOM
NYCE
CE Class B
C-Tick
CSA
IP54

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 45101512
