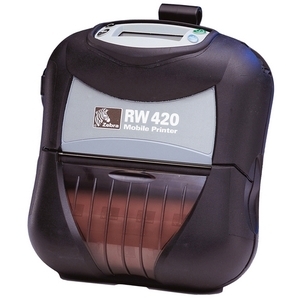

Zebra R4A-0U0A010N-00 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra ZQ630 Plus Barcode Label Printer.

Zebra RW420 - Direct thermal, 203 dpi, 8MB DRAM, 4MB Flash, MICR, Smart Card Reader, Cable, LCD and Belt Clip. Charger not included, see accessories. Power supply (Part# AT17696-1) not included, see accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Interface Options

Serial (RS-232)

Print Resolution

203 dpi

Direct Thermal Printer provides you with all the features that you need to print quickly and easily
203 maximum print resolution (dpi) for better reliance and added usability
Conveniently print your receipts
Bring convenience, value, and feature to any mobile environment
2 maximum label width for dependable, desired results
Supports tag media type for dependable, efficient results with maximum productivity
Direct Thermal Printer with mobile application/usage provides dependable printing solution with added productivity
LCD Display feature for maximum efficiency and convenience
Comes with 8 MB standard memory for timely printing with added reliability
LCD display is long-lasting with reduced screen burning to ensure maximum efficiency

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Zebra R4A-0U0A010N-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

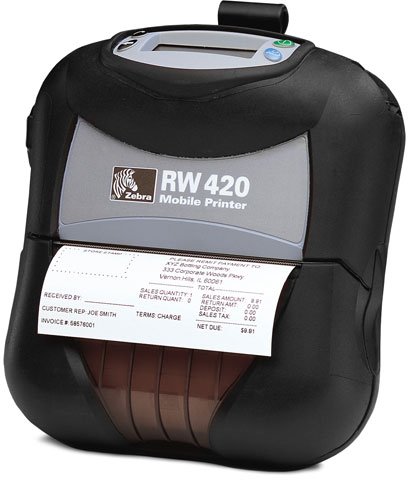

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Zebra R4A-0U0A010N-00 Portable Barcode Printer Overview

RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its convenient vehicle mounting, cable ready, and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go. As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 can withstand the harsh demands of a number of Route Accounting and Field Service printing applications, including: Invoices, Delivery Receipts, Service Estimates, Sales Orders, and Inventory Management.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
EAN-14
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
QR Code

Application/Usage:

Mobile

Features:

LCD Display
Smart Card Reader
Magnetic Card Reader

Memory

Standard Memory:

8 MB

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Tag
Label
Synthetic Media
Continuous Receipt
UV Coated Media

Media Thickness:

6.30 mil

Maximum Roll Diameter:

2.25"

Maximum Label Width:

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

4000 mAh

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

6.3"

Depth:

Miscellaneous

Package Contents:

RW 420 Mobile Receipt Printer
Lithium ion battery

Additional Information:

Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Communication: None (cable ready)
Media Handling: Standard media (with IP54 rating)
Readers: MCR/ SCR (EMV certified)
Grouping "N": (US/ Canada/ /Australia/New Zealand/ Mexico/ Nicaragua)
Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection)
Advanced 32 bit architecture for high-speed processing
Media sensors: Bar, gap
Auto-detect firmware load

Platform Supported:

Certifications & Standards:
