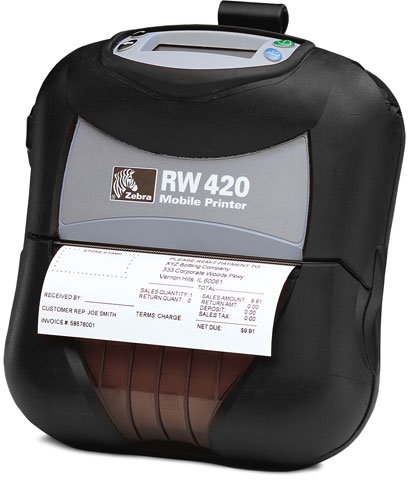

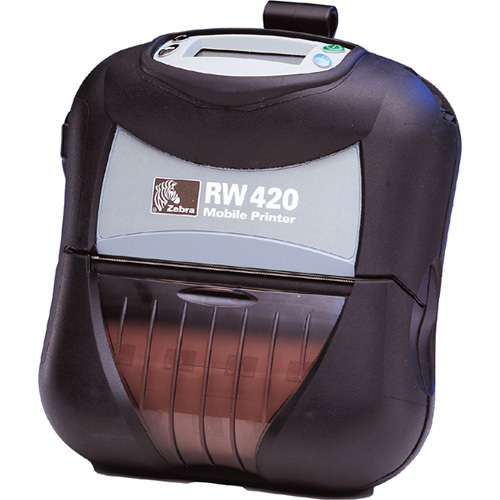

Zebra R4D-0U0A000N-10 Portable Barcode Printer

Zebra ZQ630 Plus Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZQ630 Plus Barcode Label Printer.

Zebra RW 420  -  RW420 Standard Media, Linered Platen, ADVANCED PUBLIC SAFETY

Printer Type
Mobile
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Max Print Width
4 inch
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Conveniently print your receipts
  • Portable form factor offers comfortable usage for a longer duration
  • 4.12" maximum label width to easily accommodate your needs with added productivity
  • Supports receipt media type for better reliance and maximum usability
  • Comes with 16 MB standard memory for timely printing with added reliability
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More
Need a different version? See all Zebra RW 420 Portable Barcode Printers
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued See Replacement
Zebra R4D-0U0A000N-10 Portable Barcode Printer
Zebra R4D-0U0A000N-10 Portable Barcode Printer
Zebra R4D-0U0A000N-10 Portable Barcode Printer Zebra R4D-0U0A000N-10 Portable Barcode Printer
Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!
Zebra R4D-0U0A000N-10 Portable Barcode Printer Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • FIM
  • POSTNET
  • Interleaved 2 of 5
  • MSI
  • Codabar
  • PDF-417
  • Data Matrix
  • Maxi Code
  • RSS
  • GS1 DataBar
  • QR Code
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Receipt
  • Tag
  • Gap
  • Continuous Receipt
  • Linerless
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
6.30 mil
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.12"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CPCL
  • EPL
  • XML
  • ZPL
Power Description
Input Voltage:
7.4 V DC
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Height:
6.9"
Width:
6.3"
Depth:
3"
Miscellaneous
Package Contents:
  • RW 420 Receipt Printer
  • Battery
  • Belt Clip
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0663282455441
UPC: 663282455441
EAN: 0663282455441
UNSPSC: 45101512
