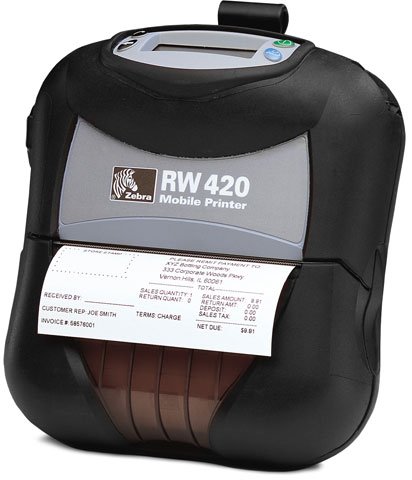

Zebra R4D-0U0A010N-GA Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra ZQ630 Plus Barcode Label Printer.

Zebra RW 420 - 8MB/16MB, US/Canada English, Standard media, Magnetic card reader, LCD, belt clip. This is the TAA compliant version of printer (Part# R4D-0U0A010N-00) for government purchasers. Please call for more information.

Printer Type

Mobile

Printing Technology

Direct Thermal

Print Resolution

203 dpi

Max Print Width

4 inch

Charges and holds a Motorola MC70 (MC7004, MC7090, MC7094, MC7095, MC7098), MC75, MC55 or MC65 device-all with up to a 2x battery
Direct thermal printing of barcodes, text, and graphics
8 MB Flash memory for downloadable programs, receipt formats, scalable fonts and graphics
16 MB DRAM 7.4 V, 4.0 AHr removable, rechargeable Li-Ion battery
Serial RS-232 (RJ-45)10 pin
Standard USB 2.0 full speed
Resident scalable fonts
Tear bar for easy receipt dispensing
Supports vertical or horizontal printing
Power on/off from printer keys, terminal or host
Center-loading media locking for variable roll widths

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Zebra R4D-0U0A010N-GA Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Zebra R4D-0U0A010N-GA Portable Barcode Printer Overview

Boost the efficiency and productivity of your mobile workforce with our compact, lightweight and rugged RW 420 Print Station-perfect for your route accounting, direct store delivery, field service/sales, or electronic citation operations.

This price-competitive mobile workforce tool with built-in, easy-to-use RW 420 mobile printer holds your choice of a Motorola® MC70 or MC75 removable mobile computer (pictured above right), and the latest version supports the Motorola MC55 or MC65 (pictured above left). Mobile workers can easily carry the streamlined RW 420 Print Station via shoulder or hand strap to customer visits-where they can rest the unit on their arm to enter data, conduct transactions via the optional magnetic stripe card reader, and print receipts and other documents. They'll carry less, do more!

In addition, both the printer and mobile computer can charge simultaneously via a single source. Combined with one of the charging options shown on the back, this feature saves you money, saves space in the vehicle or settlement/ field service dispatch center, and saves users time.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
UPC-E
UPC-A
EAN-13
EAN-8
EAN-14
EAN With 2 or 5 Digit Extension
UPC 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
GS1 DataBar
QR Code

Features:

Smart Battery Management
Dust Resistant
Water Resistant
Drop Resistant
Magnetic Stripe Reader

Ingress Protection (IP) Rating:

IP54

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Bluetooth:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Cutter

Cutter:

Yes

Cutter Type:

Tear Bar

Media Types & Handling

Media Type:

Continuous Receipt
Gap
Receipt
Tag
Linered Label

Media Sensor:

Media Out Sensor
Media Door Open Sensor

Media Thickness:

6.30 mil

Maximum Roll Diameter:

2.25"

Maximum Label Width:

4.12"

Label Core Size:

1.38"

Power Description

Power Source:

Battery
DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Rechargeable:

Yes

Environmental Conditions

Operating Temperature:

4°F (-15.6°C) - 131°F (55°C)

Operating Relative Humidity:

10% - 80%

Storage Temperature:

22°F (-5.6°C) - 149°F (65°C)

Storage Relative Humidity:

10% - 90%

Physical Characteristics

Form Factor:

Portable

Height:

7.6"

Width:

11.1"

Depth:

2.8"

Weight (Approximate):

3.24 lb

Miscellaneous

Platform Supported:

Certifications & Standards:

FCC Part 15 Class B
ICES-003, VCCI
NOM/ NYCE
CE compliance (Class B)
C-Tick

Item Numbers

UNSPSC: 45101512
