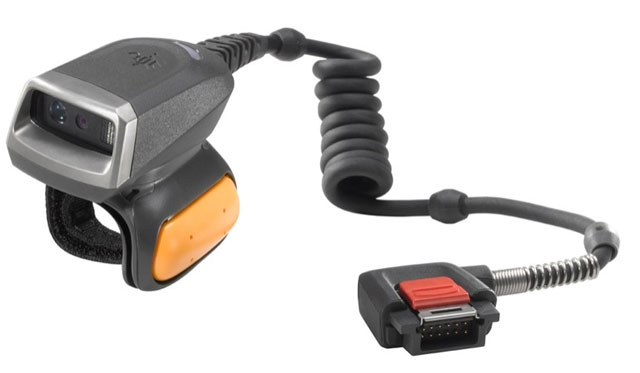

Zebra RS5000-LCFSWR Barcode Scanner

Zebra RS5000 - Wearables, Zebra RS5000, Corded 2D Imager RING Scanner TO WT6000 Wearable Terminal, Short Cable TO WRIST, Worldwide

Connectivity

Corded

Form Factor

Wearable

Interface Options

USB

Scanner Capability

Scanner Type

Laser, Omnidirectional

Scan barcodes with a staggering speed of 116 scan/s
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Streamline your business processes with an imager that point-shoots with high-performance scanning
Wired connectivity makes this scanner ideal for retail and desktop applications

Need a different version? See all Zebra RS5000 Barcode Scanners

$987.87

In Stock

Chat Now for Qty Discount

3-year Premium Plus ($360.27)

3-year Premium ($310.77)

No Support

Add to Quote

Overview

Full specifications (PDF)

Zebra RS5000 Barcode Scanner Model Overview

RS5000 1D/2D Corded Ring Scanner

Improve the productivity of your zebra wearable computer users with cost-effective hands-free 1D/2D scanning

Want to maximize the productivity of your Zebra wearable computer users? With Zebra’s hands-free RS5000 scanner, you can. Your workers can capture virtually any barcode at lightning speed with point-and-shoot simplicity — 1D or 2D, in virtually any condition. When it comes to comfort, the RS5000 delivers — this lightweight, perfectly-balanced little scanner is worn on a single finger on either hand, leaving both hands free to handle materials. And since the warehouse, distribution center and manufacturing plants are some of the toughest environments, this little scanner is big on durability. Your workers can drop it, spray it with water and even use it in the freezer — and still expect reliable operation. Get the powerful little ring scanner that delivers more — more productive workers, more value out of your Zebra wearable computers and more satisfied customers.

Rugged Ring Scanner

The RS5000 is designed for challenging warehouse and manufacturing environments. Designed for subzero environments, it can be used in your warehouse aisles and in the freezer. It can withstand a 4 ft./1.2 m drop across the entire operating temperature range — a must for freezer use. Even after 1,000 consecutive bumps, the RS5000 delivers reliable operation. And with its IP65 sealing, this rugged scanner is dust-proof and spray-proof.

Wide Working Range

Workers can capture barcodes from near contact to over 25 in./63.5 cm.

PRZM Intelligent Imaging for Unparalleled Scanning Performance

Only from Zebra, PRZM resets the bar for imaging by providing features that reduce decode time, enabling lightning fast capture of virtually any barcode in any condition. PRZM turns poor images into instantly useful images, so high quality images are available for decoding faster. PRZM then handles some of the processing typically handled in the decoder, increasing decoding speed, reducing power usage and improving battery cycle times. The result? The faster-than-ever accurate scanning your workers need to improve productivity and reduce cycle times in your operations.

Ambidextrous Operation

With the convenient swivel feature, your workers can easily switch between right and left-handed operation on the fly, allowing users to choose the hand that is most comfortable — and switch hands in seconds.

Wide Field of View

Workers can easily read the large barcodes often found in warehouses, as well as labels that contain multiple barcodes.

Omni-directional Scanning for Point-and-Shoot Simplicity

scanner, reducing training requirements and enabling intuitive and rapid barcode capture.

Separate Finger Strap Assembly

Give each worker their own easy-to-replace finger strap assembly to help improve hygiene and prevent the spread of germs.

Picklist Mode

The small and sharp aiming dot allows users to easily select and scan a single barcode from a field of barcodes.

Easy to Deploy

Whether you use the WT41N0 or WT6000 Zebra wearable computers, there is a configuration that connects in seconds.

Zebra RS5000-LCFSWR Barcode Scanner Overview

MAXIMISE WORKER PRODUCTIVITY AND THE VALUE OF YOUR ZEBRA WEARABLE COMPUTERS WITH THE RS5000

The RS5000 ring scanner is designed for challenging warehouse and manufacturing environments. Designed for subzero environments, it can be used in your warehouse aisles and in the freezer. It can withstand a 4 ft./1.2 m drop across the entire operating temperature range - a must for freezer use. Even after 1,000 consecutive bumps, the RS5000 delivers reliable operation. And with its IP65 sealing, this rugged scanner is dust-proof and spray-proof.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D:

Code 39
Code 128
Code 93
Codebar/NW7
Code 11
MSI
UPC/EAN
I 2of 5
Korean 3 of 5
GSI DataBar
Base 32 (Italian Pharma)

2D:

PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes

Scan Engine Model:

SE4710

Image Sensor Type:

Imager

Scan Rate:

116 scan/s

Scan Pattern:

Omni-directional

Scanner Range:

Standard Range

Scanning Distance:

25"

Cable Type Included:

USB

Field of View (Horizontal):

42°

Field of View (Vertical):

28°

Reading Angle (Skew):

60°

Reading Angle (Pitch):

60°

Reading Angle (Roll):

360°

Maximum Ambient Light:

96900 lux

Drop Specification:

Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range

Minimum Element Resolution (Code 39):

5 mil

Maximum Element Resolution (Code 39):

20 mil

Maximum Element Resolution (DataMatrix):

10 mil

Maximum Element Resolution (PDF417):

5 mil

Physical Characteristics

Form Factor:

Wearable

Rugged:

Yes

Product Color:

Dark Gray

Width:

1.3"

Depth:

1.1"

Length:

Weight (Approximate):

2.68 oz

Miscellaneous

Ingress Protection (IP) Rating:

IP65

Application/Usage:

Industrial
Manufacturing
Retail
Transportation
Warehouse

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Zebra RS5000-LCFSWR Barcode Scanner is also known as ZEB-RS5000LCFSWR or RS5000LCFSWR.
