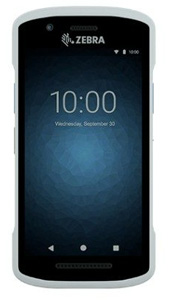

Zebra TC26AK-1JB224-NAP Mobile Computer

The Zebra TC26AK-1JB224-NAP Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra TC26-HC - Mobile Computers, Zebra TC26-HC, Healthcare WWAN, Single-WAN, 2.2GHz, GMS, SE4100, NFC, 3GB/32GB, 13 MP RFC, 5MP FFC, Back Alert Button, Basic Battery, MDNA Enterprise, NA

Interface Options

LAN

Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
Provides simple, affordable and highly secure connectivity to your remote workers with wireless technology
5" LED screen is ideal for scan intensive applications
Streamline your business processes with an imager that point-shoots with high-performance scanning
Android 10 OS with all the creative and productive tools you need
3 GB RAM / 32 GB flash memory helps run applications rapidly and stores the mightiest databases
Store your additional data in the supported microSD memory card
Wireless connectivity technology helps you always stay connected to your handheld terminal for maximum productivity
Experience the versatility of Bluetooth connectivity with your Zebra Handheld Terminal
Phone-size form factor is comfortable to utilize in intensive or non-intensive scan environments

Need a different version? See all Zebra TC26-HC Mobile Computers

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Scan Engine Model:

SE4100

Image Sensor Type:

Imager

Scanner Range:

Standard Range

Google Mobile Services (GMS):

Yes

Sensor Type:

Light Sensor
Motion Sensor
Proximity
Gyroscope
Accelerometer

Multi-SIM Supported:

Yes

Number of SIM Card Supported:

1.0

SIM Size Supported:

Nano/eSIM

Features:

Water Resistant
Push-to-talk
Gorilla Glass

Drop Specification:

4 ft./1.2 m drops to vinyl tile over concrete per MIL-STD 810G across operating temperature

Illumination Type:

LED

Illumination Color:

White

Processor & Chipset

Processor Manufacturer:

Qualcomm

Processor Type:

Snapdragon

Processor Model:

660

Processor Core:

Octa-core (8 Core)

Processor Speed:

2.20 GHz

Memory

Standard Memory:

3 GB

Flash Memory:

32 GB

Memory Card Supported:

microSD

Display & Graphics

Screen Size:

Screen Mode:

Screen Resolution:

1280 x 720

Display Screen Type:

LED

Touchscreen Information

Touchscreen:

Yes

Multi-touch Screen:

Yes

Keyboard/Keypad

Buttons & Keys:

Scan on each side; volume up/down; power; push-to-talk (PTT) keys; HC Alert key

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 5.0 BLE

Near Field Communication (NFC):

Yes

Cellular Data Connectivity Technology:

UMTS
LTE

GPS:

Yes

Global Navigation Satellite System (GNSS) Supported:

BeiDou/Galileo/GLONASS

Interfaces/Ports

USB:

Yes

USB Type-C:

Yes

Camera

Front Camera:

Yes

Front Camera Resolution:

5 Megapixel

Rear Camera:

Yes

Rear Camera Resolution:

13 Megapixel

Software

Operating System:

Android 10

Upgradable Operating System:

Android 14

Power Description

Power Source:

Battery

Battery Information

Battery Capacity:

3100 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Removable Battery:

Yes

Environmental Conditions

Operating Temperature:

14°F (-10°C) to 122°F (50°C)

Storage Temperature:

-22°F (-30°C) to 158°F (70°C)

Humidity (Non-condensing):

5% to 95%

Physical Characteristics

Form Factor:

Phone-size

Rugged:

Yes

Height:

6.1"

Width:

3.1"

Depth:

0.5"

Weight (Approximate):

8.43 oz

Miscellaneous

Application/Usage:

Healthcare

Ingress Protection (IP) Rating:

IP67

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
REACH

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43211715

Reviews

Q&A

Accessories

Service Contracts

Questions? Get Help from
a Mobile Expert!

The Zebra TC26AK-1JB224-NAP Mobile Computer is also known as ZEB-TC26AK1JB224NAP or TC26AK1JB224NAP.
