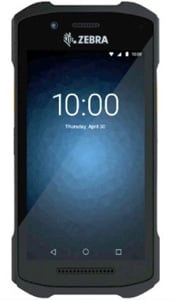

Zebra TC26 CBRS Mobile Computer Model Overview
The ultimate cost-effective touch computer built for small and big business
If you’re considering purchasing low-cost mobile phones for your workers, step up to the TC26 CBRS Touch Computer — without stepping up in price. Help your workers access the data they need to act more efficiently. With multiple configurations at different price points, you pay only for the features your workers need. With cellular, CBRS and WiFi, your workers get the comprehensive connectivity options they need to stay connected out in the field and in the office. Powerful complimentary Mobility DNA tools are pre-loaded and ready to use, making it easier to stage, secure and troubleshoot devices; capture and send data to your applications right out of the box; and much more. Plus, the Mobility DNA Enterprise License delivers premium voice capabilities over WiFi and unlocks a powerful data toolkit that takes workforce productivity and device management simplicity to a new level.
Lightweight right-sized small design
Lightweight, easy to carry and easy to operate with one hand.
All the familiarity of Android
Right out of the box, your workers will know how to use the TC26 CBRS, virtually eliminating training. And built-in support for the next Android release provides superior future-proofing.
Built for business
Waterproof, dustproof, drops to concrete, snow, rain, heat, freezing cold — the TC26 can handle it all. Plus, the display and scanner exit window are fortified with Gorilla Glass.
Large 5-Inch high definition advanced touchscreen
Get plenty of space to interact with your applications. And the touchscreen is easy to view indoors and outside in bright sunlight.
All the wireless connections you could ever need
When it comes to wireless, the class-leading TC26 offers it all — WiFi, cellular, Bluetooth, GPS, NFC and CBRS, the newest wireless networking option that enables the creation of private LTE wireless networks to meet specific business needs.
Zebra’s most powerful ‘Ultimate Series’ platform
Simultaneously run the most demanding applications of today and tomorrow. And the TC26 CBRS is a natural fit for businesses that utilize Zebra’s other mobile devices.
Capture it all with a high resolution 13 MP rear camera
From proof of delivery to a damaged package, completed repair, occasional barcode capture and more, do it all with the integrated autofocus color camera.
Superior voice quality and functionality
VoLTE delivers superior voice quality over cellular networks, while Zebra’s advanced VoWiFi technology, included with the Mobility DNA Enterprise License, delivers superior voice quality over all of your WiFi voice applications — for example, Push-to-Talk Express for basic walkie-talkie style communications, the Workforce Connect PTT Pro subscription service for walkie talkie-style communications over cellular, CBRS and WiFi networks, and Workforce Connect Voice to turn TC26 devices into fully-featured PBX handsets.
The right service plan for the right price
Constant peak performance and device uptime. That’s the upside of protecting your investment with Zebra OneCareTM SV. Reduce device vulnerabilities, eliminate unexpected disruptions and unbudgeted repair expenses. You can also optimize your service with additional, flexible for-fee modules that provide expedited repair shipping, battery maintenance, device commissioning and cloud-based device visibility.
LifeGuardTM — a lifetime security guard for AndroidTM
LifeGuard for Android provides the security patches and updates you need to keep your TC26 devices secure every day they are in service. Included with your warranty and with all Zebra OneCare Support Service agreements.
Extensive business-class accessory family
Easily and cost-effectively manage any size device pool in any environment with single and multi-slot chargers and cradles, vehicle holders, wearable and carrying solutions and more.
Integrated enterprise-class scanning
With the built-in SE4710 scan engine, capturing a 1D or 2D barcode couldn’t be faster or easier. And with Zebra’s industry leading advanced algorithms, workers can capture virtually any barcode in practically any condition — even if it’s poorly printed, damaged or dirty.
A removable single or multi-shift battery
Get 10 hours of power with the standard battery, or choose the extended battery for 14 hours of power — ideal for long or double shifts. And since the battery is removable, you never need to take the device out of service for charging.
Create a hands-free wearable solution in the warehouse
The optional wrist-mount accessory provides the comfort and productivity boost of hands-free operation. And your workers can just tap to pair with Zebra’s RS5100 Bluetooth ring scanner and Zebra mobile printers.
5 MP front camera for video calls
Enable technicians in the field to collaborate with experts to increase first-time-to-fix rates, simplify on-the-job training and more.
Add Powerful Enterprise Features with Mobility Extensions (Mx)
Choose from over a hundred features to improve the security, data capture support, wireless connectivity and device manageability of the standard Android operating system. You’re in charge — you decide what and when to activate. And features can be automatically configured via your Enterprise Mobility Management (EMM).
Stage your devices for use in seconds with StageNow
Easily stage a handful or thousands of Android devices with a quick scan of a barcode or tap on an NFC tag.
Enterprise Home Screen
Easily control the applications and device features your workers can access. And you can create different configurations for different teams, such as sales and marketing — no developer required.
It’s a snap to enter barcodes into your apps
Send barcodes captured with the scanner right into your existing apps with Zebra’s DataWedge — no programming or modification of your existing apps required. The result? A big time-savings — without any cost.
Take full advantage of data capture features with EMDK
The Zebra Enterprise Mobility Development ToolKit (EMDK) has everything you need to fully utilize data captured by any TC26 feature in your applications.
Improve device uptime with Device Diagnostics
Eliminate the high cost of needlessly sending devices that don’t need repair to the Zebra Repair Center with Device Diagnostics. This simple to use tool allows administrators and end users alike to test the main systems on Zebra mobile computers with a simple press of a button to reveal whether the device can be fixed on site — or must be sent out for repair.
Optional Mobility DNA Enterprise license
Unlock powerful voice and data tools to maximize the functionality and value of your TC26 devices. You get superior voice quality, including full-duplex voice. And a suite of innovative data solutions take device management, device security and data entry to a new level of simplicity.
Markets and Applications
• Warehouse • Manufacturing • Ports and Yards • Stadiums • Parking Lots • Airports • Theme Parks
Scanning
SE4710 1D/2D imager Camera scanning Camera Rear camera 13 MP; front camera 5 MP NFC Integrated; MIFARE, ISO 14443 A&B , FeliCa , ISO 15693 and NFC Forum supported cards; read range up to 50 mm
Fast Roam
PMKID caching; Cisco CCKM; 802.11r (Over-The-Air); OKC
Physical Characteristics
Dimensions With standard battery: 6.22 in. L x 3.11 in. W x .0.54 in. D 158 mm L x 79 mm W x 13.7 mm D With extended battery: 6.22 in. L x 3.11 in. W x .0.68 in. D 158 mm L x 79 mm W x 17.3 mm D Weight 8.32 oz./236 g with standard battery; 269 g with extended battery Display 5.0 in. color HD (1280 x 720); LED backlight; Corning® Gorilla® Glass Imager Window Corning® Gorilla® Glass Touch Panel Capacitive Touch Panel; multi-touch
Wireless LAN
WLAN Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 1x1 MU-MIMO Data Rates 2.4 GHz: 802.11b/g/n — 20MHz, 40MHz — up to 150 Mbps 5 GHz: 802.11a/g/n/ac – 20MHz, 40MHz, 80MHz – up to 433 Mbps Operating Channels Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20, 80 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0- MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA Enterprise 192-bit Mode (GCMP-256) - EAP-TLS; Enhanced Open (OWE) Certifications 802.11a/b/g/n; WPA; WPA2; WPA3
Wireless WAN Data and Voice Communications
Radio Frequency Band TC26 North America • UMTS: B2/B4/B5 • LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/ B41/B48/B66 • LTE: Category 6 Voice Communications Optional Push-to-Talk (PTT) Express Mobility DNA software application for instant PTT walkie-talkie style calls inside the four walls. Optional Workforce Connect Push-to-Talk (PTT) Pro Mobility DNA easy-to-deploy, cost-effective subscription-based software application that provides instant PTT walkie-talkie style calls inside and outside the four walls via an easy-to-deploy subscription service. Optional Workforce Connect Voice turns TC26 devices inside your facility into fully-featured PBX handsets. Its customizable interface makes it easy to execute even the most complex telephony features — eliminating the need to purchase and manage additional voice-enabled devices. GPS GPS with A-GPS: Glonass; BeiDou; Galileo
Wireless PAN
Bluetooth Bluetooth 5.0 BLE, Class 2

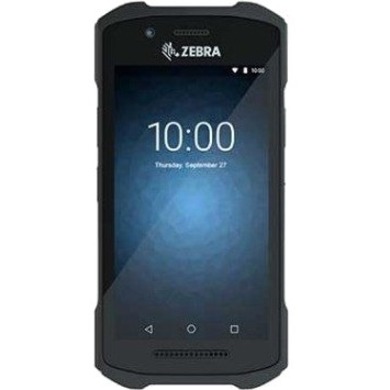

Zebra TC26EK-21A222-NA Mobile Computer Overview
The ultimate cost-effective touch computer built for small and big business
If you're considering purchasing low-cost mobile phones for your workers, step up to the TC21/TC26 Touch Computers - without stepping up in price. All the right business features help your workers capture and access the data they need to act faster and more efficiently. The right rugged design delivers reliable operation, day in and day out. The right business class accessories makes the TC21/TC26 easier to use and easier to manage. With multiple configurations at different price points, you pay only for the features your workers need, including connectivity - the WiFi-only TC21 for workers inside the four walls or the WiFi/cellular TC26 for workers out in the field. Powerful complimentary Mobility DNA tools are pre-loaded and ready to use, making it easier to stage, secure and troubleshoot devices; capture and send data to your applications right out of the box; restrict access to features and applications; and more. And the Mobility DNA Enterprise License delivers premium voice capabilities over WiFi and unlocks a powerful data toolkit that takes workforce productivity and device management simplicity to a new level.
A new level of features for a value-priced device
Lightweight right-sized small design
Lightweight, easy to carry and easy to operate with one hand.
First device in its class to offer Android 10
Familiarity with Android virtually eliminates training, while Android 10 with built-in support for a future Android release provides superior future-proofing - the devices you buy today will run future OS generations.
Large 5-inch high definition advanced touchscreen
Get plenty of space to display and interact with your applications. The touchscreen is easy to view indoors and outside in bright sunlight. And workers can enter data using a bare finger or a light to medium weight glove.
Built for business
Waterproof, dustproof, drops to concrete, snow, rain, heat, freezing cold - the TC21/TC26 can handle it all. And two of the most vulnerable device components are fortified with the Gorilla Glass - the display and the scanner exit window.
All the wireless connections you could ever need
When it comes to wireless, the class-leading TC21/TC26 offers it all - WiFi, cellular, Bluetooth, GPS (TC26 only) and NFC.
Zebra's most powerful 'ultimate series' platform
Simultaneously run the most demanding applications of today and tomorrow. And the TC21/TC26 is a natural fit for businesses that utilize Zebra's other mobile devices.
Capture it all with a high resolution 13 MP rear camera
From proof of delivery to a damaged package, completed repair, occasional barcode capture and more, do it all with the integrated autofocus color camera.
Superior voice quality and functionality
VoLTE delivers superior voice quality over cellular networks, while Zebra's advanced VoWiFi technology, included with the Mobility DNA Enterprise License, delivers superior voice quality over all of your WiFi voice applications - for example, Push-to-Talk Express
Full specifications (PDF)
