Zebra UWH-1200-A-00AA Data Networking

Zebra UWB Hub & Sensor Features• Virtual planning tool with site file downloadable to hub• Exceptional performance — Performs in high multi-pathenvironments• Compliant with International UWB Standard, IEEE 802.15.4.f• Excellent real-time location accuracy — Better than 30 cm (1 foot)line of sight• Long RTLS Range — Up to 200 meters (650 feet)• Unmatched RTLS tag throughput — Up to 3500 1 Hz tags/ hub• Fast intuitive setup — Typical single location set-up in one day• Sensor “proximity” mode via Hub — Provides fully attenuablepresence detection capabilities• Weatherproof external antenna solution• Fully assembled ATEX Zone1, IIB + H2,T5 sensor (optional)

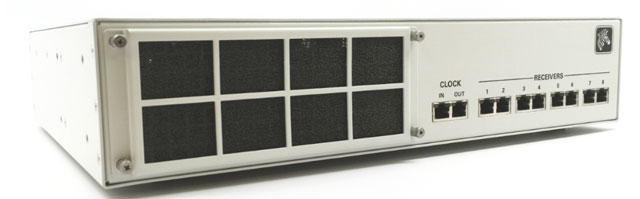

Embedded software on the hub allows for system configuration and display of real-time tag locations via a browser-based GUI interface based on a Java™ run-time environment. The hub provides power, data, and clock to the Zebra UWB sensors over a single shielded Ethernet cable, enabling simple and fast sensor installation. The Hub software allows you to use any Zebra UWB Sensor in “proximity” mode. A typical RTLS Sensor can now be turned into a proximity reader with fully attenuable UWB read range. The Zebra UWB solution includes System Builder, a powerful virtual planning tool designed to aid in the installation and optimization of the Zebra UWB system. System Builder is used to define the site and sensor coordinate system, model the coverage of the Zebra UWB sensors and define reference and virtual groups to optimize the performance of the installation. System Builder generates a site file that is downloaded to the hub and is used to configure all RTLS parameters.

Zebra UWB sensors are placed throughout the site originating from the hub and then typically daisy-chained from one sensor to the next. The Zebra UWB portfolio offers three standard sensors, each with an integral antenna (High-gain, Mid-gain and Omni). The Zebra UWB solution gives you industry leading range and design flexibility while providing world-class UWB location accuracy at minimal investment. The Zebra UWB portfolio also includes a bulk-head sensor, which connects to an external antenna and is used in outdoor and hazardous environments. This combination allows for the sensor to be placed within a weatherproof or intrinsically safe enclosure with antenna external to the enclosure, achieving optimum range and performance similar to the performance seen in the standard, integrated sensor offering. For hazardous environments, Zebra offers a pre-assembled sensor within an enclosure that is certified for use in potentially explosive environments as defined by the ATEX Directive.B

Part NumberUWH-1100-A-00AA PerformanceData ThroughputUp to 3,500 1 Hz tags/second per hubTag CapacityUp to 10,000 tags/ hubEnvironmental/PhysicalOperating Temperature0° C to 40° C (32° F to 104° F)Length35.6 cm (14.0 in)Width22.9 cm (9.0 in)Height8.9 cm (3.5 in)Weight1.64 kg (58 oz)Power100 – 240 VDC 50/60 Hz 2.5 A (Provides power for up to 64 total sensors)Wired Communications InterfaceNetworkEthernet/CAT 5eSensorHigh speed serial, RJ-45, shielded CAT 5e cabling or unshielded with use of Zebra ferrite kitRegulatory ApprovalsNorth AmericaFCC part 15 subpart B, ICES-003, UL60950-1, CAN/CSA-22.2 No. 60950-1-07European Union, EN55024, EN55022, IEC 60950-1rtsr

Part Numbers
High-Gain: UWC-1100-A-00AB
Mid-Gain: UWC-1200-A-00AB
Omni: UWC-1300-A-00AB
Bulkhead: UWC-1400-A-00AB
Bulkhead w/ATEX Enclosure: UWC-1410-A-0AAA

Data ThroughputUp to 3, IEC 60950-1rtsr

High-Gain: UA-110-0A
Mid-Gain: UA-120-0A
Omni: UA-130-0AFrequency Range6.35 to 6.75 GHzAntenna GainHigh-Gain: 12.3 dBiMid-Gain: 9.4 dBiOmni: 5.0 dBiEnvironmental/PhysicalOperating Temperature-40° C to 70° C (-40° F to 158° F)Environmental RatingHigh-Gain: IP40Mid-Gain: IP40Omni: IP40Bulkhead (IP66 w/ optional enclosure): IP30Bulkhead w/ ATEX Enclosure: IP66Length WidthHigh-Gain: 15.5 cm (6.1 in), 6.4 cm (2.5 in)Mid-Gain: 15.5 cm (6.1 in), 6.4 cm (2.5 in)Omni: 25.4 cm (10.0 in), 6.4 cm (2.5 in)Bulkhead: 16.0 cm (6.3 in), 6.4 cm (2.5 in)Bulkhead w/ ATEX Enclosure: 34.0 cm (13.4 in), 31.8 cm (12.5 in) Height WeightHigh-Gain: 7.1 cm (2.8 in), 0.45 kg (1.0 lb)Mid-Gain: 7.1 cm (2.8 in), 0.45 kg (1.0 lb)Omni: 7.1 cm (2.8 in), 0.54 kg (1.2 lb)Bulkhead: 7.1 cm (2.8 in), 0.45 kg (1.0 lb)Bulkhead w/ ATEX Enclosure: 15.7 cm (6.2 in), 17.2 kg (38.0 lb
