Zebra UWT-1101-A-00AB Data Networking

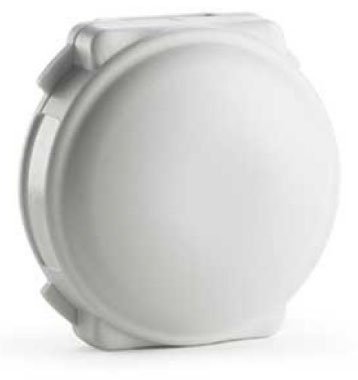

Zebra UWB Tags are small, active tags used in asset and personnel visibility applications. The tags emit short Ultra-wideband (UWB) pulses that are detected by Zebra’s UWB Sensors. Each tag transmits a unique ID that can be associated with a specific asset. The UWB Sensors connect to Zebra’s UWB Hub, which determine the real-time location of the UWB Tags.The Zebra UWB Tag is the world’s first UWB tag compliant with the new International UWB Standard, IEEE 802.15.4.f, as well as ISO-24730-61. The Zebra UWB Tag may be configured to operate in its native Zebra format or in ISO/IEEE format. Like our UWB Tag, Zebra’s UWB Sensors are also ISO/IEEE compliant. With Zebra’s standards-compliant UWB solution, you secure your UWB infrastructure investment and extend its capabilities since the infrastructure is compatible not only with Zebra’s tags but also other standards-compliant tags.UWB Tag transmissions are extremely short in duration, providing excellent real-time location accuracy and permitting thousands of tags to be simultaneously located. The short-duration UWB pulses also result in exceptionally long battery life. For example, the UWB (programmed at 1 Hz blink rate) can be used to continuously track an asset for over seven years. Tags are powered with a 3V coin cell battery and can be turned on/off and set to a wide range of blink rates using the Zebra UWB Wand.

Features and Benefits

• FCC Part 15.250 and ETSI EN 302 500-1 compliant
• Compliant with International UWB standard, IEEE 802.15.4f,and ISO 24730-61 International standard
• IP67 rated – fully dust and waterproof
• Exceptional performance – Performs in high multi-pathenvironments
• Excellent real-time location accuracy – Better than 30 cm(1 foot) line of sight
• Long tag battery life – Up to 7 years at 1 Hz blink rate
• Long RF Range – Up to 200 meters (650 feet)
• Programmable on/off and wide range of tag transmission rates
• UL 913, Class 1 Division 1, Groups A-D, T4
