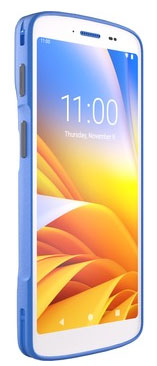

Zebra WLMT0-H20B6DCJ1-NA Mobile Computer

Empower clinical and non-clinical healthcare workers to improve efficiency, task accuracy and patient outcomes

Introducing Zebra’s newest family of rugged healthcare mobile computers, the Wi-Fi only HC20 and HC50, purpose built to deliver all the features healthcare workers need to improve efficiency, accuracy, the quality of patient care and patient outcomes. This series offers the perfect balance of ergonomics, features and cost — a pocketable device that is easy to carry, easy to use, easy to disinfect and easy to manage. Run demanding healthcare multi-media rich applications and enable comprehensive communications capabilities for superior collaboration. These small devices are big in extended functionality, able to transform into a two-way radio, a PBX handset and a workstation. And Zebra-only extras — such as Device Tracker, Intelligent Cabinets1 and Mobility DNA1 — practically eliminate lost devices and the cost of device access management, while adding complementary tools that boost usability and manageability.

The ergonomics every healthcare worker wants Zebra’s thinnest and lightest healthcare mobile computer is perfectly balanced to minimize hand fatigue. Contoured surfaces and sculpted lower bumpers reduce pressure points and provide any size hand with a secure grip — and all day comfort. Built for constant disinfecting The disinfectant-ready design offers advanced medical grade plastics that support the widest selection of disinfectants in the industry. And a specially designed housing and USB-C port plug minimize crevices where pathogens can accumulate. 20% more display space to see more — and scroll less The high resolution, 6-inch, FHD+ edge-to-edge display is bright and easy to read in virtually any lighting. And it works with the thin gloves typically worn by healthcare workers. Call for help with one press of the emergency alert button This programmable dedicated button can be configured to call a specific number or launch an application in emergency or duress situations, with an activation sequence that prevents false alarms. One set of accessories for both models Make carrying easy with the disinfectant-ready healthcare carry clip or hand strap. There are cradles designed for the backroom, a desk or a nurses station, plus extra batteries to ensure power for back-toback shifts and a screen protector that boosts display durability. Unbeatable battery features No need to take these devices out of service to charge — if the battery runs low, just swap in a fully charged battery. With true hot swap2, you can change batteries without impacting device functionality — no missed calls, no missed notifications, no lost data. PowerPrecision technology provides real-time metrics to monitor battery health, so you can easily spot and replace batteries that can no longer hold a full charge. And you can use any standard USB-C charge cable for charging flexibility.

World-class split-second scanningBarcode scanning is a crucial part of everyday healthcare workflows. Now, workers can easily capture barcodes on patient wristbands, medication vials, supplies, medical equipment, food trays and more — even if barcodes are damaged or poorly printed. And the white illumination and green LED aimer are patient friendly, safe for use everywhere in the hospital.

Capture high-resolution photos with the 16 MP rear cameraFrom clinical workers capturing wound condition to non-clinical workers documenting facility rounding, completion of maintenance or damaged incoming inventory or equipment, a picture really is worth a thousand words. With the easy capture of high resolution photographic documentation, healthcare workers can spend less time explaining — and more time on crucial tasks.

Healthcare workers use graphics-intensive applications — from clinicians visualizing patient vital signs remotely and viewing imaging studies to maintenance engineers accessing detailed equipment schematics. The HC20 and HC50 can handle it all with its faster processor, large memory space and 2TB MicroSD card slot.

In the mission critical world of healthcare, a dropped or slow connection at the wrong time can have disastrous results. With support for Wi-Fi 6 (HC20)3 and Wi-Fi 6E (HC50), you can provide four times the number of devices with triple the speed of Wi-Fi 5.4 Everyone benefits — workers get the fastest and most reliable Wi-Fi connections, and your organization can quadruple staff without requiring additional network infrastructure.

Instantly check to see if medical equipment has been recalled before use, protecting patient safety. Easily capture charges for all items, protecting the bottom line. And inventory visibility is complete and more accurate, eliminating risky out of stocks.

Get crystal clear voice, even if workers are in a noisy environment — from a busy emergency room to hospital hallways and the receiving dock. Advanced voice technologies include: three integrated microphones, advanced noise canceling algorithms, dual speakers for loudness, a high quality speaker phone and support for HD Voice and Bluetooth wireless headsets.

Empower your workers with multiple voice-calling capabilities — push-to-talk (PTT) communications and the ability to place and accept PBX calls. Now, nurses can reach a physician instantly or take a call from a family member checking on a loved one — all right on the HC20/HC50.5 And with Profile Manager, these optional voice solutions are easy to deploy and manage.

Comply with privacy laws that protect patient information with text messaging that is secure and auditable — unlike text messaging on the cellular public network.

Enable remote telehealth consultations with physicians, pharmacists and other caregivers through the HC50’s 5 MP front facing camera.

Support through Android 16 ensures forward compatibility with future versions of Android. Deploy ‘no touch’ updates on your schedule with Zebra Zero Touch. Control availability of GMS services on your devices with Stage Now to increase security. Add over 100 features to improve Android’s security, data capture support, wireless connectivity and device manageability. And with LifeGuardTM for AndroidTM, you get a lifetime security guard for your Zebra mobile devices. LifeGuard ensures the latest security patch is always installed, while providing powerful update modes that put you in control over how and when devices are updated.

Simplify every aspect of device management and give workers time-saving tools that improve productivity with this comprehensive collection of applications that contain many no-cost tools.

Find lost and misplaced devices quickly and easily with Device Tracker — even if the device is turned off or the battery is depleted.

When tasks require a larger screen, keyboard, mouse and printer, just insert the HC20/HC509 into a Connect Cradle to create a fullyfeatured mobile-driven workstation — ideal at nurses stations, on portable ‘computers on wheels’, ward hubs and more.

Facilities • Hospitals • Non-acute facilities (ambulatory centers, outpatient and home healthcare) • Nursing/care homes • Hospice/palliative care (outside of hospital) Applications Non-clinical • Environmental health • Facilities management • Patient transport • Materials management • Food services • Engineering and security • Hospital supply chain management • Training staff Clinical • Nurses • Physicians • Clinical support staff • Therapists • Lab/Pharmacist technicians • Phlebotomists • Midwives • Nutritionists • Physiotherapists • Behavior health specialists • Dieticians

Dimensions 6.5 in. L x 3.0 in. W x 0.49 in. D 165 mm L x 76.3 mm W x 12.5 m D Weight HC20: 8.4 oz./239 g HC50: 8.5 oz./242 g Display 6.0 inch color Full High Definition+ (1080 x 2160), 450 NITS Imager Window Corning® Gorilla® Glass Touch Panel Multi mode capacitive touch with bare or light gloved fingertip input Backlight LED backlit

User removable; rechargeable Li-Ion; 3800mAh/14.63Wh; standard capacity with BT BLE; PowerPrecision for real-time battery metrics; fast charge; true hot swap (HC50) Expansion Slot Supports up to 2TB MicroSD Network Connections WLAN, WPAN, USB 3.1 (Bottom Type C) - Super Speed (host and client) Notifications Audible tone; multi-color LEDs; vibration Keypad On-screen keypad Voice and Audio Three microphones with noise cancellation; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; HD Voice, including Superwideband (SWB), Wideband (WB) and Fullband (FB) Buttons Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down Safety/Alert Red Alert Button with emergency dialer feature

CPU Qualcomm® 5430 hex-core, 2.1 GHz Operating System Upgradable to Android 16 Memory HC20: 6 GB RAM/64 GB UFS Flash HC50: 8 GB RAM/128 GB UFS Flash Security Product supports Secure Boot and Verified Boot User Environment Operating Temperature 14°F to 122°F/-10°C to 50°C Storage Temperature -40°F to 158°F/-40°C to 70°C Humidity 5%-95% non-condensing Drop Specification Multiple 4 ft./1.25 m drops to tile over concrete over operating temperature range per MIL-STD 810H Tumble Specification 500 tumbles, 1.6 ft./0.5 m Sealing IP68 and IP65, with battery per applicable IEC sealing specifications Electrostatic Discharge (ESD) +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge Interactive Sensor Technology (IST) Light Sensor Automatically adjusts display backlight brightness Magnetometer eCompass automatically detects direction and orientation Motion Sensor 3-axis accelerometer with MEMS Gyro

Bluetooth Class 2, Bluetooth v5.2 with BLE beaconing Disinfecting and Cleaning Highly disinfectant ready; Healthcare plastics — supports 30+ wipes and disinfectants. For information on Zebra-approved disinfectants and guidelines on cleaning HC20/HC50 devices, please visit: https://connect.zebra.com/ DeviceDisinfection_us Warranty Subject to terms of Zebra’s hardware warranty statement, the HC20 and HC50 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty Environmental Compliance RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit www.zebra.com/environment Recommended Services Zebra OneCare™ Special Value (SV) (HC20 only); Zebra OneCare™ Essential/ Select (HC50); Zebra VisibilityIQ Foresight™; Professional Services

Facilities • Hospitals • Non-acute facilities (ambulatory centers, outpatient and home healthcare) • Nursing/care homes • Hospice/palliative care (outside of hospital) Applications Non-clinical • Environmental health • Facilities management • Patient transport • Materials management • Food services • Engineering and security • Hospital supply chain management • Training staff Clinical • Nurses • Physicians • Clinical support staff • Therapists • Lab/Pharmacist technicians • Phlebotomists • Midwives • Nutritionists • Physiotherapists • Behavior health specialists • Dieticians
