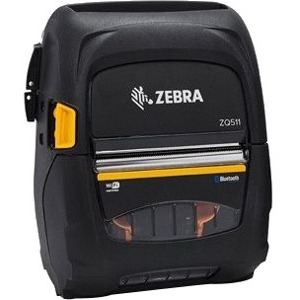

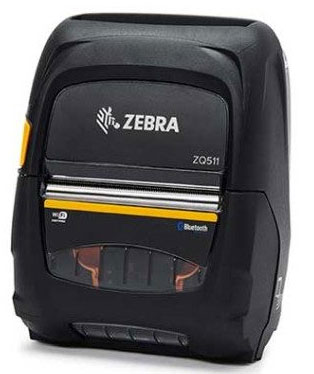

Zebra ZQ511R RFID Printer Model Overview
The ZQ511 and ZQ521 RFID Mobile Printers are the most rugged premium mobile printers on the market. Built to withstand the most demanding environments, both printers feature a military-grade design, and are engineered to handle drops, dust, water and extreme temperatures.
Key Features:
- The ZQ511 and ZQ521 printers can be used in a wide range of applications and are the only mobile printers in the industry that can print and encode UHF RFID labels on the spot, reducing the need for rework. Optimized for on-demand receipt printing in 3 in./72mm and 4 in. /104mm print widths, the ZQ511 and ZQ521 printers also print a variety of labels including UHF RFID tags for all your tracking needs.
- The ZQ511 and ZQ521 are designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3’ (1M). Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case. If this isn’t enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6’ to 10’ and improves the IP rating to IP65.
- New printhead and print mechanism, as well as new processor and added memory, deliver consistent outstanding print quality and performance. Keep your employees on task and on schedule with the ZQ500 RFID Series’ secondary Bluetooth communication channel. Send print jobs to the printer via one channel while a second channel performs additional functions such as device management. Boost print speeds (5+ inches-per minute) with the “draft mode” feature for text-only printing. Do more on a single battery charge with Zebra’s patented Power Smart Print Technology™ that delivers the exact amount of power required for the highest quality printing. And, experience consistently sharp print quality—even in hot and cold temperatures—with enhanced temperature compensation.
- The ZQ511 and ZQ521 RFID printers’ high-capacity 3250 mAh PowerPrecision+ battery powers your team – even during the longest shift. The printer also conserves battery life by entering sleep mode when not in use, then automatically wakes up when a print job is sent.
- With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth 4.1 Classic and Low Energy, your workers can count on blazing fast and secure connections. Use the dual radio to simultaneously operate 802.11ac and Bluetooth 4.1 for added connectivity.
Zebra’s ZQ500™ Series just got tougher. The premium ZQ511™ and ZQ521™ printers — both available in RFID models — pair best-in-class mobile printing with a military-grade design that is rugged to the max. Print and encode Ultra High Frequency (UHF) RFID labels on-demand, anywhere. Experience extreme durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and unmatched battery capacity mean this printer will work as hard and long as you do.
RFID On-Demand, On-the-Spot
Optimized for on-demand receipt printing in 3” (72mm) and 4” (104mm) print widths, the ZQ511 and ZQ521 RFID printers also print a variety of labels including UHF RFID tags for all your tracking needs. Zebra’s comprehensive RFID portfolio is the only one to include mobile printers to help you reduce errors, and print and encode RFID labels on-the-go. Automatically calibrate RFID media with Zebra’s adaptive encoding technology.
The Most Rugged Printers on the Market
You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3’ (1M), the ZQ511 and ZQ521 RFID printers can withstand more than the average mobile printer. Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case. If this isn’t enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6’ to 10’ and improves the IP rating to IP65.
Built to Last
New over-molding helps increase the longevity and keeps your ZQ500 RFID Series looking good over the life of the printer.
Consistent outstanding print quality and performance are key.
New printhead and print mechanism, deliver it. Keep your employees on task and on schedule with the ZQ500 RFID Series’ secondary Bluetooth communication channel. Send print jobs to the printer via one channel while a second channel performs additional functions such as device management. Boost print speeds (5+ inches-per minute) with the “draft mode” feature for text-only printing. Do more on a single battery charge with Zebra’s patented Power Smart Print Technology™ that delivers the exact amount of power required for the highest quality printing. And, experience consistently sharp print quality—even in hot and cold temperatures with enhanced temperature compensation.
Power Your Team to Do More
The ZQ511 and ZQ521 RFID printers’ high-capacity 3250 mAh PowerPrecision+ battery powers your team – even during the longest shift. The printer also conserves battery life by entering sleep mode when not in use, then automatically wakes up when a print job is sent.
Stay Connected Everywhere
With support for 802.11ac Wi-Fi and its latest security protocols, your workers can count on blazing fast and secure connections. Use the dual radio to simultaneously operate 802.11ac and Bluetooth 4.1 for added connectivity.
No Manual Needed
ZQ500 RFID Series printers are designed for anyone to use. The simple user interface prevents accidental printer setting changes. Large buttons increase accuracy for gloved hands and fingers. Easy media loading cuts time spent changing supplies.
Simple to Manage
Take your printing capabilities to a new level with Zebra’s powerful Print DNA suite of productivity, management, development and visibility tools. Transforming printers from the inside, our solution lets you easily configure, manage and maintain your Print DNA printers anywhere around the globe. Analyze printers in real time, automate processes, manage security settings and much more. Gain visibility and manage your ZQ500 RFID Series Bluetooth printers inside and outside your four walls with Zebra’s Bluetooth Management. Using SOTI® MobiControl® or Zebra’s Printer Profile Manager Enterprise and an Android mobile computer as a gateway, you can manage printer settings, view real-time status, download and retrieve content from printers and even update the operating system.
Zebra Certified Supplies
A successful RFID solution requires a high-performing thermal label and inlay. Using inlays from leading manufacturers, as well as Zebra-branded inlays, pre-tested thermal materials and RFID manufacturing on two continents, Zebra can provide an RFID labeling solution that will meet the requirements of your application. Our Supplies Innovation and RFID Inlay Lab enables Zebra to uniquely offer both label material and inlay recommendations that will provide the best performance taking into account the surface to be labeled and the environment in which it will exist. Choose from the widest selection of in-stock items, ready to ship within 24 hours or have us create a custom solution for you. Maximize the benefits of RFID across your enterprise with Zebra RFID Labels.
Service When You Need It
You invest in Zebra printers to better serve your customers and boost operational efficiency. Now, you can ensure predictable performance and eliminate unbudgeted repair expenses with Zebra OneCare™. You get unmatched technical support direct from Zebra, as well as comprehensive repair services, including accidental damage and defined repair turn-around times. And Zebra’s Visibility Services provide the real-time insight into printer operational information you need to increase printer availability and optimize utilization within your workflows.
AC Adapter
Connect the AC adapter to your ZQ500 Series printer and wall outlet to charge the printer’s PowerPrecision+ battery while in the printer. The printer can print receipts and labels and perform other functions during charging. Connect the ZQ500 Series printer (or charging cradle) to AC power to charge the printer’s internal battery.
Vehicle Cradle
Dock and charge a single ZQ500 Series printer on a tabletop/countertop or mount in a vehicle/on a forklift. Must be ordered with an open-ended, vehicle lighter adapter or AC adapter. Meets IP43-rating for additional protection from liquid and solid ingress. Compatible with the ZQ500 Series printers with or without extended battery and with or without exoskeleton. Can be mounted with RAM mounting arm. Requires specific driver for connecting via USB.
4-Slot Power Station
Docks and charges up to four ZQ500 Series printers simultaneously. Supports printers in the exoskeleton and with / without extended battery. Power supply ships with the 4-Slot Power Station.
Dual Charging Vehicle Adapter
Charges a ZQ500 Series printer and a TC70 or TC75 mobile computer simultaneously via the vehicle lighter power adapter.
12-24V DC Power Supply
12-24V DC power supply charges the ZQ500 Series printer via vehicle open-ended or vehicle lighter power adapter. Connects to barrel jack on printer, or on the vehicle / single slot printer charging cradle.
3-Slot Battery Charger
Dock and charge up to three ZQ500 Series PowerPrecision+ Li-Ion printer batteries at a time. The 3-slot battery charger ships with a power supply and line cord.
1-Slot Battery Charger
Docks and charges a single ZQ500 Series PowerPrecision+ Li-Ion printer battery. Integrated power supply. Ships with line cord.
Exoskeleton
Increase drop specification to 3m/10’, seals off ports, and increases to IP65 rating for extreme-use environments. Can be used with single and extended battery packs, 4-slot printer power station and single slot charging cradle.
Markets and Applications
Transportation & Logistics • Pallet-level tagging • Field service • Direct store delivery • Airline baggage tagging • Post and parcel Healthcare • Asset management • Specimen tracking • Pharmacy inventory Manufacturing/ Warehouse • Asset tagging • Field service • Direct store delivery • Pallet-level tagging • Packing/staging/ cross-docking labeling Government • Parts tracking • Asset management • Defense logistics • Cannabis regulatory compliance Retail and Hospitality • In-store RFID exception tagging • Click and collect label printing • Food supply chain traceability
Standard Features
• Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines • Globally certified for RFID to support multinational deployments • RFID data log records all RFID data with timestamps, ensuring data traceability • RFID job-monitoring tools track RFID performance • RFID ZPL commands provide compatibility with existing Zebra RFID printers • Prints and encodes tags with a minimum pitch of 0.6 in/16 mm • Support for industry standard multi-vendor chip-based serialization (MCS) • Supports block permalocking of user memory compatible with ATA Spec 2000 • Integrated RFID Reader/Encoder • Android, Apple iOS, Windows Mobile connectivity • Bluetooth specification 4.1 EDR + LE • WLAN 802.11ac • Fast roaming 802.11r supported • 528 MHz ARM processor • 3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion) • USB On-The-Go ports (with optional strain relief) • Power Smart Print Technology — anticipates upcoming printing to optimize battery consumption and print speed • Direct thermal printing of barcodes, text and graphics • IP54 rated for protection against solid and liquid ingress • MIL-STD 810G certified for drop and shock • Tolerance of multiple drops from 6.6’ (2m) to concrete • Tumble testing per the IEC68-2-32 spec with 1300 free falls from 3.3’/1m • Simple easy-to-read LCD with large icons for battery and wireless status • Dual-sided tear bar which allows for clean tears in either direction (not available with linerless SKUs) • Supports vertical and horizontal printing • Printer can be used in any orientation • Center loading, adjustable for variable roll widths • “Clamshell” design for easy media loading • Label odometer • XML support • Resident fixed and scalable fonts • Mark media sensing using fixed center position sensors (Note: RFID models do not support gap sensing.) • Cold Temperature Compensation mode-optimizes/balances print speeds to allow for better print performance at lower temperatures • PPME, Mirror, SNMP, WebServer, AirWatch® & Soto Connectors and Wavelink Avalanche® • NTP (Network Time Protocol) support via WiFi • Sleep mode supported. Wake on Bluetooth, WiFi and Touch • Real time clock (RTC) supported for time stamp
