To stay ahead in today’s highly competitive manufacturing or transportation and logistics industries, you need technology solutions that will grow with your business. ZT600 Series RFID printers combine industrial durability and user-friendly features with future-proof adaptability—including a factory- or field-installable RFID encoder—to meet your evolving needs for years to come. Gain greater visibility of your printing systems with Link-OS® applications and managed Operational and Asset Visibility Services (OVS/AVS), plus the ability to deepen your insight into your entire business with advanced RFID printing and encoding.
Get Unparalleled Visibility and Control with Link-OS
At Zebra, we believe printers should be as intuitive, user-friendly and integrated as the smartphones and other devices that keep us connected outside of work. With Link-OS, they are. This unique software platform gives you unprecedented, real-time visibility and control of your printing systems, on-site or remotely, with cloud-accessible applications that simplify everything from setup to management to troubleshooting
Expand Your View with Industry-Leading Tracking Technology
It only takes five minutes to upgrade the ZT610 and ZT620 to RFID encoding in the field. Once RFID-enabled, these printers are engineered to accurately and efficiently print and encode labels for today’s most advanced item-level tracking applications. Adaptive encoding enables media flexibility and simple RFID calibration, eliminating complex placement guides. An intuitive menu further reduces setup time. And Zebra’s RFID technology is certified on six continents, providing operational visibility and business insight across complex, multinational supply chains.
Get 24/7 Reliability, Even in the Harshest Environments
Built to deliver outstanding print quality under the most challenging industrial conditions, ZT600 Series printers virtually eliminate operational downtime due to printer failure. Their durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. Guided instructions and feedback eliminate common errors and reduce manual adjustments for highly consistent printing. And high-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications. A field-installable, full-width, guillotine-style cutter with catch tray is ideal for apparel tag applications
Reduce RFID Media Costs
Tags are spaced incredibly close together, with a distance (pitch) of 0.6"/16 mm or narrower on most RFID inlays—smaller than what other printer/ encoders can accommodate. By spacing inlays closer, label converters use less material, which reduces your cost per label, requires fewer media roll changes and gives you faster printer/encoder throughput.
Customize Your Configuration with Flexible Connectivity
System setup, integration and updates are a snap with virtually every modern connectivity option. Standard connectivity includes Serial, USB, Gb Ethernet, USB Host and Bluetooth 4.0 with optional Parallel, 802.11a/b/g/n, Applicator Port, IPv6 and BTLE capabilities. You also get two open media slots for non-standard connectivity options, design failover connections and provisioning for future protocols.
Increase Your Efficiency with a User-Friendly Design
Every detail of the ZT600 Series was designed to put time back in your day. An intuitive LCD interface simplifies daily use. Color-illuminated media and ribbon paths streamline routine maintenance. Adjustable media width and pressure toggles easily accommodate more applications. And onboard sensors, diagnostics and help resources empower you to manage issues without having to call in support.
STANDARD FEATURES
• Print Methods: Thermal transfer and direct thermal printing • Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window • Side-loading supplies path for simplified media and ribbon loading • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality • Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0 • Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance • Simplified icon menu navigation system categorizes settings into logical groups of functions
RFID
• Integrated RFID system is user-upgradeable in the field and available on both 4" and 6" models • Adaptive Encoding Technology automatically selects optimum encode settings • Supports industry standard, multi-vendor, chip-based serialization • Supports block permalocking of user memory compatible with ATA Spec 2000 • Allows users to track performance with RFID job-monitoring tools
OPTIONS AND ACCESSORIES
Connectivity • Two open communication slots to add internal cards for 802.11ac, parallel, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port Media Handling • Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner • Cutter: Front-mount guillotine cutter and catch tray • 1" I.D. Core media supply hanger • Ink-side in ribbon supply spindle Keyboard Display Unit • ZKDU™ keyboard display units for stand-alone printing applications
SOFTWARE TOOLS
Link-OS Solutions Document Design – Quickly design a customized print solution using your business data and Zebra’s intuitive plug-and-print design tools. Device Integration – Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems. Device Management – Manage your print operations locally and globally with Zebra’s suite of device management tools. Developer Tools – Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more. Web View – Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers. Alert – Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.
ZEBRA ONECARE™ MAINTENANCE PLANS
Zebra’s comprehensive suite of equipment maintenance plans provides coverage for normal wear and tear, accidental damage and technical support beyond standard warranty. With Zebra OneCare, you can maximize device uptime, get predictable repair costs and minimize unbudgeted expenses.
ZEBRA ADVANTAGE SERVICES
Zebra Advantage Services offers a full suite of professional services to help you assess, design, implement and manage your printing technology ecosystem. Our expert consultants will work with your team to understand your current environment and future goals, and create a customized plan to help you achieve success.
ZEBRA’S PRINT ENGINE
Zebra’s print engines are the foundation of our industrial printer/encoders. Built with the same components, print mechanism and technology as our printer/encoders, they deliver the same high reliability, exceptional print quality and outstanding throughput. And they can be integrated into virtually any third-party solution.
INDUSTRY APPLICATIONS: Manufacturing, Transportation and Logistics, Retail, Government, Healthcare
For more information about ZT600 Series RFID Industrial Printers/Encoders, visit www.zebra.com/zt600r or access our global contact directory at www.zebra.com/contact
Exceptional Performance

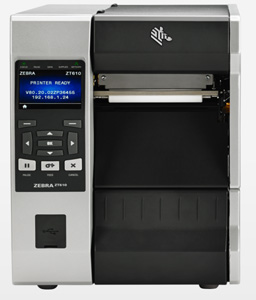

Get the exceptional performance you need to keep mission-critical operations running smoothly, plus intelligent, user-friendly features that give you total visibility and control at all times with 4-inch width (104 mm), 600 dpi printing on the ZT610.
